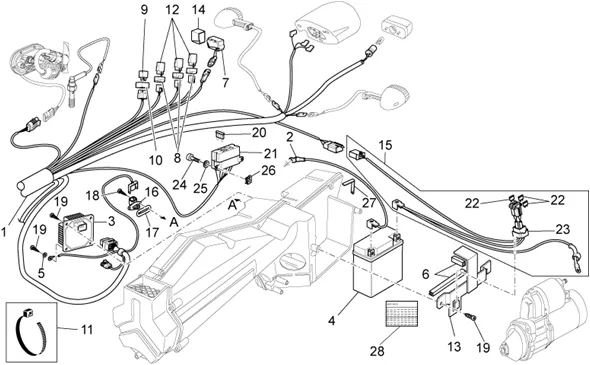

Chassis : 33.33 CIRCUIT ELECTRIQUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/503/Nevada_Classic_IE_750_2009_33.33.PNG)
1 |
883550-CABLAGGIO PRINCIPALE NEVADA 09 More informationQuantity required : 1 |
||||||
|
2 |
GU32747910-WIRING MASSE-BATTERY More informationQuantity required : 1 |
||||||
|
3 |
883798 - CENTRALINA INIEZ.ELETTR. 750 More informationQuantity required : 1 |
||||||
|
4 |
640201-BATTERY 12V-12AH YUASA YTX14AHL-BS More informationQuantity required : 1 |
||||||
|
5 |
GU95129101-WASHER More informationQuantity required : 1 |
||||||
|
6 |
890517-GASKET DUCT G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/1/img/67301.jpg)
7 |
SENSOR DE CHUTE/CAPEUR ANTI-BASCULEMEMENT OEM PIAGGIO COMMON A LA RANGE-584509 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/7/img/72277.jpg)
8 |
SANGLE RUBBER DE BLOC OEM PIAGGIO COMMON A LA RANGE-AP8220283 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/5/8/img/73458.jpg)
9 |
RELAIS 5 FICHES 12V 40A-15A OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/9/img/72289.jpg)
10 |
RUBBER BRACKET RELAIS OEM PIAGGIO COMMON A LA RANGE-AP8220546 More informationQuantity required : 1 |
||||||
|
11 |
GU14609650-CLAMP 3, 6X20, 6 More informationQuantity required : 31 |
||||||
|
11 |
GU49609601-CLAMP 2, 4X92 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
12 |
RELAIS 12V/30A OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8224462 More informationQuantity required : 3 |
||||||
|
13 |
GU32418210-FLANGE More informationQuantity required : 1 |
||||||
|
14 |
AP8144046 - CAOUTCHOUC DETECT. INCL. More informationQuantity required : 1 |
||||||
|
15 |
GU32748010-WIRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/6/6/img/73466.jpg)
16 |
DETECTEUR DE TEMPERATURE AIR OEM APRILIA-MOTO-GUZZI COMMON A LA RANGE-GU30729330 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/5/9/img/73459.jpg)
17 |
GASKET DETECTEUR TEMPERATURE AIR OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-GU30027931 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
18 |
SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
19 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 6 |
||||||
|
20 |
AP8127346-FUSIBLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
20 |
BLADE FUSE STANDARD 15A OEM PIAGGIO COMMON A LA RANGE-290860 More informationQuantity required : 5 |
||||||
|
21 |
AP8124274-BO? TE A FUSIBLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/1/img/73401.jpg)
22 |
BLADE FUSE STANDARD 30A OEM PIAGGIO COMMON A LA RANGE-CM225730 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/7/img/71277.jpg)
23 |
RUBBER DOOR FUSIBLES OEM PIAGGIO COMMON A LA RANGE-AP8112811 More informationQuantity required : 1 |
||||||
|
24 |
GU98682215-SCREW M5X15 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/3/img/132703.jpg)
25 |
WASHER PLATE (5. 25X14X1. 5) OEM PIAGGIO COMMON A LA RANGE-GU95100059 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
26 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
|
27 |
GU31112965-PLATE More informationQuantity required : 1 |
||||||
|
28 |
GU32517710-SCREW More informationQuantity required : 1 |
