Vehicle Exploded View - MOTO-GUZZI NEVADA 750 Nevada Classic IE 750 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

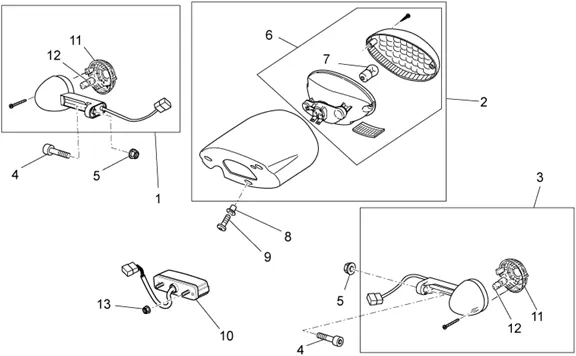

Chassis : 33.30 FEUX ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/503/Nevada_Classic_IE_750_2009_33.30.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/6/5/img/129065.jpg)
1 |
FRONT LEFT INDICATOR/REAR RIGHT TOUT CHROME OEM PIAGGIO MOTO-GUZZI V7, NEVADA, BELLAGIO 2016 <-GU06751600 More informationQuantity required : 1 |
||||||
2 |
TAILLIGHT- "PIAGGIO GENUINE PART" MOTO GUZZI 940 BELAGIO 2007>2013, NEVADA 750 2004>2013 -GU32740960- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/7/4/7/img/131747.jpg)
3 |
FRONT RIGHT INDICATOR/REAR LEFT TOUT CHROME OEM PIAGGIO MOTO-GUZZI V7, NEVADA, BELLAGIO 2016 <-GU32750660 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/5/9/img/133059.jpg)
4 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-GU98370621 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/1/img/65941.jpg)
5 |
NUT FLANGE (6) OEM PIAGGIO COMMON A LA RANGE-219277 More informationQuantity required : 2 |
||||||
|
6 |
GU03740930-LAMP REAR More informationQuantity required : 1 |
||||||
|
7 |
GU93450224-LAMPE (OU AMPOULE) 12V/5-21W More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/9/2/img/132592.jpg)
8 |
BUSH ANTI VIBRATION (M5) OEM PIAGGIO COMMON A LA RANGE-GU93231605 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/3/6/img/133036.jpg)
9 |
GU98350218-SCREW M5X18 More informationQuantity required : 3 |
||||||
|
10 |
GU32745260-LAMP DE PLATE More informationQuantity required : 1 |
||||||
|
11 |
GU32753760 - VITRE CLIGNOTANT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
12 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
13 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 2 |
