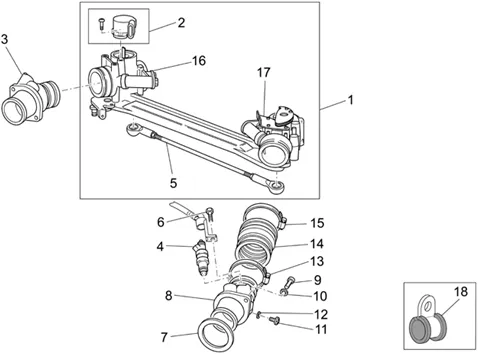

Moteur : 34.08 CORPS À PAPILLON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/502/Nevada_Classic_IE_750_2004-2008_34.08.PNG)
1 |
GU32112510 - CORPE PAPILLON COMPL. More informationQuantity required : 1 |
||||||
|
2 |
GU05112830 - POTENTIOMETRE More informationQuantity required : 1 |
||||||
|
3 |
GU32115010-MANIFOLD D. More informationQuantity required : 1 |
||||||
|
4 |
GU32115710-KIT INJECTEUR COMPLETE More informationQuantity required : 2 |
||||||
|
5 |
GU32530509 - TIGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
6 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 2 |
||||||
|
7 |
GU32115510-GASKET * More informationQuantity required : 1 |
||||||
|
8 |
GU32115011-MANIFOLD G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/2/img/133182.jpg)
9 |
GU98682322 - VIS M6X22 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
10 |
WASHER ELASTIC (6. 4X12) OEM PIAGGIO COMMON A LA RANGE-GU03013800 More informationQuantity required : 4 |
||||||
|
11 |
GU98310609 - VIS M6X10 More informationQuantity required : 2 |
||||||
|
12 |
GU95100116-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/1/2/img/132612.jpg)
13 |
CLAMP (57X59, 5X10) ORIGNE PIAGGIO COMMON A LA RANGE-GU93305057 More informationQuantity required : 2 |
||||||
|
14 |
GU32114310 - MANCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/1/5/img/132615.jpg)
15 |
CLAMP 61/65. 5 OEM PIAGGIO COMMON A LA RANGE-GU93305061 More informationQuantity required : 2 |
||||||
|
16 |
GU32112610-BODY A THROTTLE BODY D. More informationQuantity required : 1 |
||||||
|
17 |
GU32112611 - CORPS A PAPILLON G. More informationQuantity required : 1 |
||||||
|
18 |
GU32718010-CLAMP More informationQuantity required : 2 |
