Vehicle Exploded View - MOTO-GUZZI NEVADA 750 Nevada Classic IE 750 2004-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

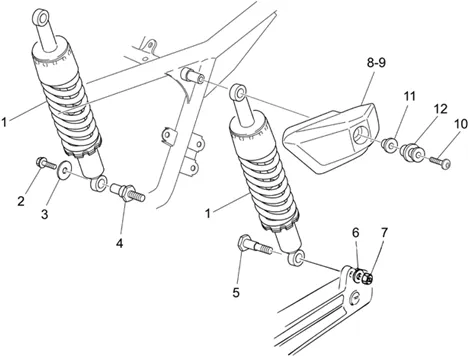

Chassis : 33.33 AMORTISSEUR AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/502/Nevada_Classic_IE_750_2004-2008_33.33.PNG)
1 |
884034-AMMORTIZZATORE POST. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
2 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 1 |
||||||
|
3 |
GU95005330-WASHER 6, 4X30X1, 5 More informationQuantity required : 1 |
||||||
|
4 |
GU32555210-PIVOT More informationQuantity required : 1 |
||||||
|
5 |
GU32555211-PIVOT More informationQuantity required : 1 |
||||||
|
6 |
GU95129181 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/8/6/img/132486.jpg)
7 |
GU92606210 - ECROU M10X1,5 More informationQuantity required : 1 |
||||||
|
8 |
GU32558160-COVER-AMMORT., D. More informationQuantity required : 1 |
||||||
|
9 |
GU32558260 - COUVRE-AMMORT., G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/9/8/img/133198.jpg)
10 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-GU98690335 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
11 |
BUSH EN T (6. 1X10X5. 5) OEM PIAGGIO COMMON A LA RANGE-AP8121075 More informationQuantity required : 2 |
||||||
|
12 |
GU32558760-SCREW More informationQuantity required : 2 |
