Vehicle Exploded View - MOTO-GUZZI NEVADA 750 Nevada Classic 750 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

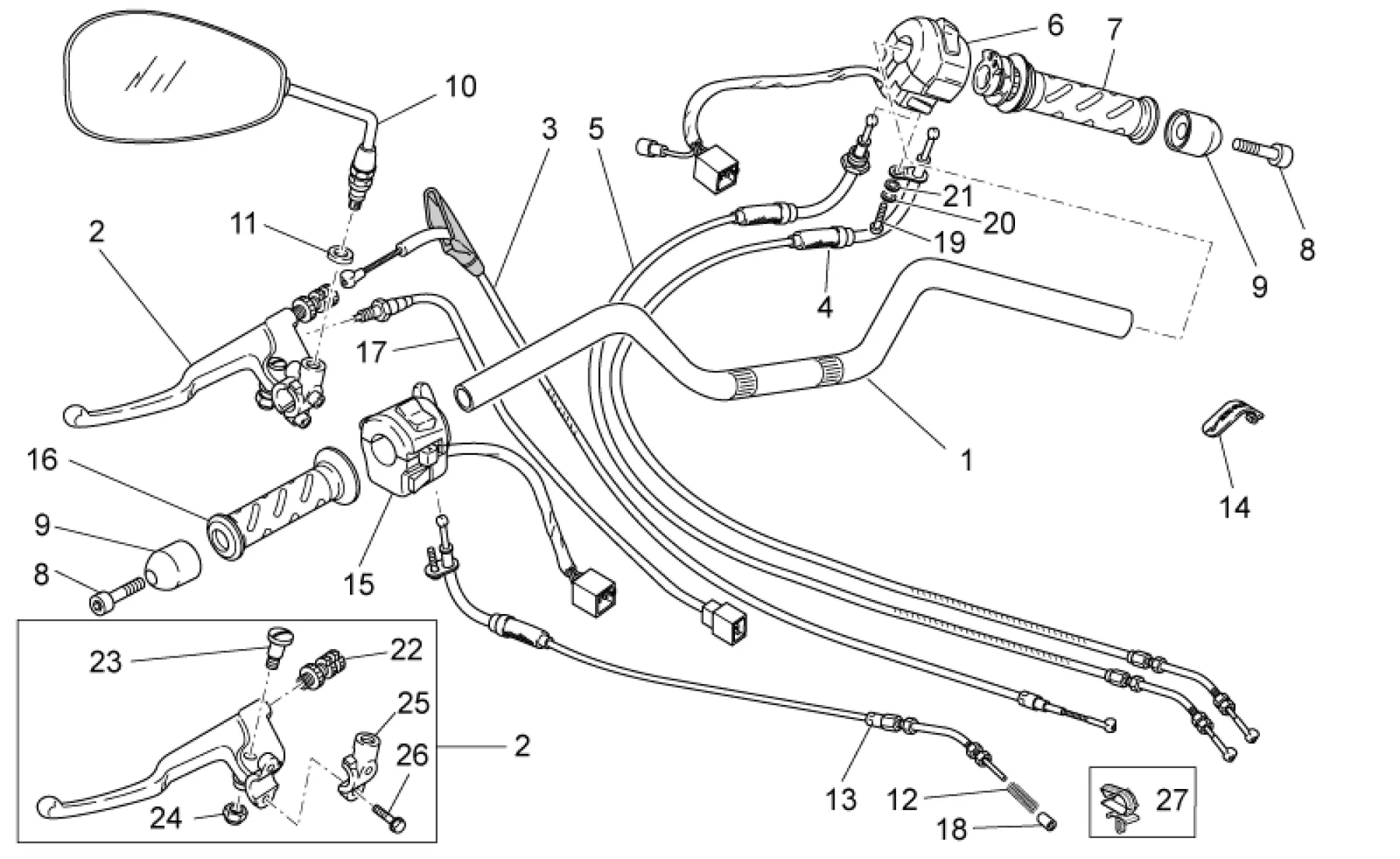

Chassis : 33.18 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/501/Nevada_Classic_750_2012-2013_33.18.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/6/7/4/img/131674.jpg)
1 |
HANDLEBAR OEM PIAGGIO MOTO-GUZZI 750 NEVADA CLASSIC-GU32600360 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/8/4/img/73484.jpg)
2 |
GRIP CLUTCH COMPLETE (COULEUR ALU) OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA-GU32605510 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/8/7/2/img/98872.jpg)
3 |
CABLE/CONTROL/TRANSMISSION CLUTCH OEM PIAGGIO MOTO-GUZZI NEVADA CLASSIC 2004 > 2013-883942 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/5/4/6/img/99546.jpg)
4 |
CABLE/CONTROL/TRANSMISSION OUVERTURE THROTTLE OEM PIAGGIO MOTO-GUZZI 750 NEVADA 2012 > 2013, V7 2016 >-887852 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/5/4/7/img/99547.jpg)
5 |
CABLE/CONTROL/TRANSMISSION LATCH THROTTLE OEM PIAGGIO MOTO-GUZZI 750 NEVADA 2012 > 2013, V7 2016 >-887853 More informationQuantity required : 1 |
||||||
6 |
B063135-DEVIOLUCI DX V7 * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/8/3/img/73483.jpg)
7 |
GRIP RIGHT RUBBER OEM MOTO-GUZZI V7-GU32603310 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/9/8/img/133198.jpg)
8 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-GU98690335 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/0/6/7/img/126067.jpg)
9 |
HANDLEBAR END OEM PIAGGIO FOR MOTORCYCLE-GUZZI 940 BELLAGIO 2007 > 2013, 1200 GRISO 2007 > 2013, 750 NEVADA 2009 >, 750 V-7 2008 >-GU32602860 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/9/6/8/img/99968_20260415164519.jpg)
10 |
PAIRE DE RETROVISEURS (FU) OEM PIAGGIO MOTO-GUZZI 1100-1200 BREVA 2005 >, GRISO 2005 >, 1200 NORGE 2006 >, 1100 CALIFORNIA 2006 > 2011, 750 V7 2009 >, NEVADA 2009 >, 850 V9 2016 >, 940 BELLAGIO-97702R More informationQuantity required : 2 |
||||||
|
10 |
PAIRE DE RETROVISEURS (FU) OEM PIAGGIO MOTO-GUZZI 1100-1200 BREVA 2005 >, GRISO 2005 >, 1200 NORGE 2006 >, 1100 CALIFORNIA 2006 > 2011, 750 V7 2009 >, NEVADA 2009 >, 850 V9 2016 >, 940 BELLAGIO-97702R More informationQuantity required : 2 |
||||||
|
11 |
GU91181003-SPACER 10, 25X20X4 More informationQuantity required : 2 |
||||||
|
12 |
883752-MOLLA More informationQuantity required : 1 |
||||||
|
13 |
GU32137060-CABLE STARTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/8/9/5/img/101895.jpg)
14 |
CLAMP SERRE CABLE 46 MM OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU01609630 More informationQuantity required : 2 |
||||||
|
14 |
GU03609600-CLAMP L36 MM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/1/2/6/img/101126.jpg)
15 |
LEFT SWITCH "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7 RACER-STONE, NEVADA -B063511- More informationQuantity required : 1 |
||||||
|
16 |
GRIP RUBBER LEFT OEM MOTO GUZZI NEVADA, V7-GU32603010 More informationQuantity required : 1 |
||||||
|
17 |
GU29759150-INTERRUPTEUR STAND More informationQuantity required : 1 |
||||||
|
18 |
GU39094200-CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/6/1/img/132961.jpg)
19 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-GU98230510 More informationQuantity required : 1 |
||||||
|
20 |
GU95008305-WASHER 5, 3X10X1 More informationQuantity required : 1 |
||||||
|
21 |
GU95021105-WASHER EVENT. More informationQuantity required : 1 |
||||||
|
22 |
AP8118348-REGLAGE LEVER CLUTCH More informationQuantity required : 1 |
||||||
|
22 |
AP8118348-REGLAGE LEVER CLUTCH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/4/img/72194.jpg)
23 |
SCREW LEVER CLUTCH OEM APRILIA 50-125 RS/MOTO GUZZI 750 BREVA, V7, V9-AP8213028 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/6/0/img/71360.jpg)
24 |
NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP8118490 More informationQuantity required : 1 |
||||||
|
25 |
AP8118349-CAVALIER More informationQuantity required : 1 |
||||||
|
26 |
GU97202325-SCREW FLANGE BLACK M6X25 More informationQuantity required : 2 |
||||||
|
27 |
AP8221310-GUIDE-CABLE More informationQuantity required : 1 |
