Vehicle Exploded View - MOTO-GUZZI NEVADA 750 Nevada Classic 750 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

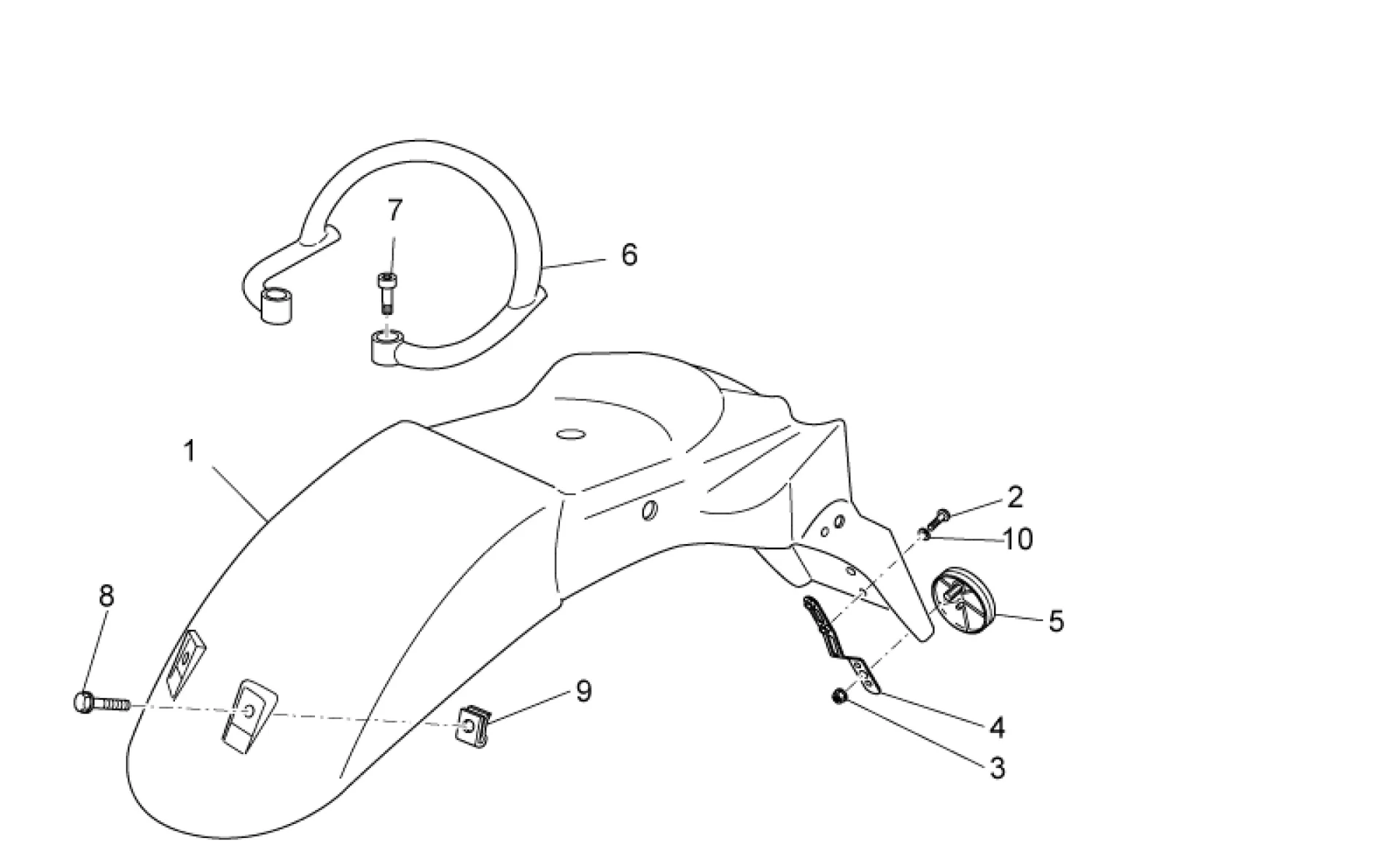

Chassis : 33.16 CARROSSERIE ARRIÉRE II- PORTE-PLAQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/501/Nevada_Classic_750_2012-2013_33.16.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/5/5/5/img/131555.jpg)
1 |
REAR MUDGUARD "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA 2004>2013 -GU32474660 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/6/1/img/132961.jpg)
2 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-GU98230510 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
3 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/0/2/img/71702.jpg)
4 |
BRACKET DE CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8134448 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/5/img/72325.jpg)
5 |
CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE-AP8224164 More informationQuantity required : 1 |
||||||
6 |
GU32464360-GRIP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/0/img/67410.jpg)
7 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-600123 More informationQuantity required : 2 |
||||||
|
8 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-GU98210616 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
9 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
|
10 |
GU95007205 - RONDELLE More informationQuantity required : 2 |
