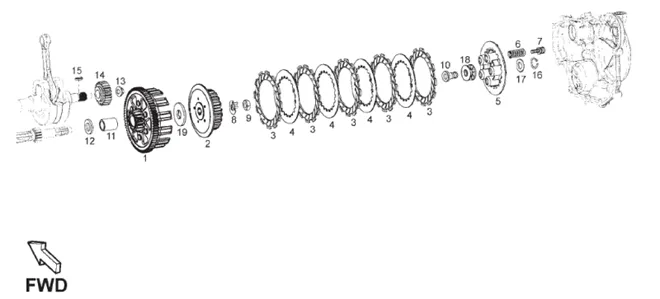

Vehicle Exploded View - DERBI MULHACEN 125 Mulhacen 125 4T E3 2010 (EMEA)

	P2R reference	189170
	Maker reference	2R000189

2R000189 - ENGRENAGE

	P2R reference	189171
	Maker reference	2R000190

2R000190 - ENGRENAGE

	P2R reference	69428
	Maker reference	847045

NOIX D'CLUTCH OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50-125 RS4 2011 >, 50 SX, RX 2006 >, 125 RX, SX 2018 >-847045

	P2R reference	70353
	Maker reference	871341

DISC CLUTCH OEM PIAGGIO APRILIA 125 RS 2011 >, TUONO 2017 >, SX, RX 2018 >-871341

	P2R reference	146189
	Maker reference	1A007879

DISC CLUTCH MENE OEM PIAGGIO APRILIA 50-125 RS, TUONO-1A007879

	P2R reference	69429
	Maker reference	847046

PLATEAU D'EMBRAYAGE OEM 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA 50-125 RS4 2011 >, 50 SX, RX 2006 >, 125 SX, RX 2018 >-847046

	P2R reference	70712
	Maker reference	879285

SPRING CLUTCH OEM APRILIA 125 RS, RX, SX, TUONO 2011 >-879285

	P2R reference	69431
	Maker reference	847048

SCREW CRUCIFORME (5X35) PLATEAU CLUTCH OEM DERBI SENDA 2005 >/GILERA SMT, RCR 2006 >/APRILIA 50-125 RS4 2011 >, 50 SX, RX 2006 >, 125 SX, RX 2018 >-847048

	P2R reference	70608
	Maker reference	876418

WASHER BRAKE D'EMBRAYAGE 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI 50 SENDA 2006 >/APRILIA 50 RS4 2011 >, 50 RX, SX 2006 >-876418

	P2R reference	69492
	Maker reference	847221

NUT NOIX CLUTCH OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI 50 SENDA 2000 >-847221

	P2R reference	69494
	Maker reference	847223

PIVOT DE BUTEE D'EMBRAYAGE OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA RX, SX 2006 >, RS 2006 > 2010, RS4 2011 >-847223

	P2R reference	72846
	Maker reference	B044411

B044411 - ENTRETOISE

	P2R reference	69491
	Maker reference	847218

WASHER CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 >/APRILIA 50-125 SX, RX, RS-847218

	P2R reference	72693
	Maker reference	B015804

NUT IGNITION/PULLEY OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-B015804

	P2R reference	70372
	Maker reference	8714475001

8714475001-SPROCKET

	P2R reference	70373
	Maker reference	8714475002

8714475002-SPROCKET

	P2R reference	63674
	Maker reference	0000975

CLAVETTE IGNITION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-000097

	P2R reference	63602
	Maker reference	000000471105

CIRCLIP FOR CLUTCH CONTROL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00000047110

	P2R reference	69495
	Maker reference	847224

WASHER DE SCREW PLATE D'APPUIS CLUTCH OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX, RS-847224

	P2R reference	69493
	Maker reference	8472226

BEARING DE ROD OF CONTROL CLUTCH OEM 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006 >, RS4 2011 >-8472226

	P2R reference	187216
	Maker reference	847042

WASHER CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA SX, RX, RS 2006 >-1A009075

	P2R reference	187216
	Maker reference	1A009075

WASHER CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA SX, RX, RS 2006 >-1A009075
