Vehicle Exploded View - DERBI MULHACEN 125 Mulhacen 125 4T E3 2010 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

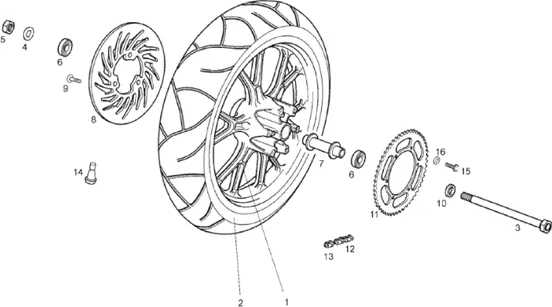

Cadre : 66.10 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1112/Mulhacen_125_4T_E3_2010_(EMEA)_66.10.png)
1 |
RIM/REAR WHEEL OEM APRILIA 50 RS 2006 >-00H01310381 More informationQuantity required : 0 |
||||||
|
2 |
899860-TYRE AR SAVATECH 130/70X17 " More informationQuantity required : 0 |
||||||
|
3 |
00H01305201 - S/ENSEMBLE AXE ROUE ARRI$RE GP More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/0/img/63730.jpg)
4 |
WASHER WHEEL (DIAMETRE 15) OEM PIAGGIO GILERA 50 50 SMT, RCR/DERBI 50 SENDA/APRILIA RS, RX, SX-00032015000 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/1/4/img/64214.jpg)
5 |
NUT FRONT WHEEL OU REAR 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2003 >/APRILIA RS4 2011 >, 50 SX, RX 2011 >-00H00300672 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/8/1/img/67481.jpg)
6 |
BEARING (15X35X11) REAR WHEEL OEM PIAGGIO 50 GILERA SMT 2011 >/DERBI SENDA 2003 >-601345 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/0/0/img/64500.jpg)
7 |
SPACER DE REAR WHEEL OEM PIAGGIO APRILIA 50-125 RS 2011 >, 125 TUONO 2017 >-00H01308091 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/5/4/img/70154_20260526172827.jpg)
8 |
BRAKE DISC (D218/INT57/6TROUS) REAR OEM PIAGGIO 50 GILERA SMT, RCR 2011 >/DERBI SENDA SM 2010 >/APRILIA SX, RX 2011 >, 50-125 RS4 2011 >-866115 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/5/9/img/151759.jpg)
9 |
SCREW FLANGE TH (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-2B004560 More informationQuantity required : 0 |
||||||
|
10 |
867494-BUSH More informationQuantity required : 0 |
||||||
|
11 |
865033-COURONNE More informationQuantity required : 0 |
||||||
|
12 |
864388-CHAIN More informationQuantity required : 0 |
||||||
|
13 |
00H01502211-CLIP QUICK More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
14 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-270991 More informationQuantity required : 0 |
||||||
|
15 |
864850 - VIS More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/3/img/63733.jpg)
16 |
00037000600-RONDELLA CONICA SICUREZZA D. 6 More informationQuantity required : 0 |
