Vehicle Exploded View - DERBI MULHACEN 125 Mulhacen 125 4T E3 2007-2009 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

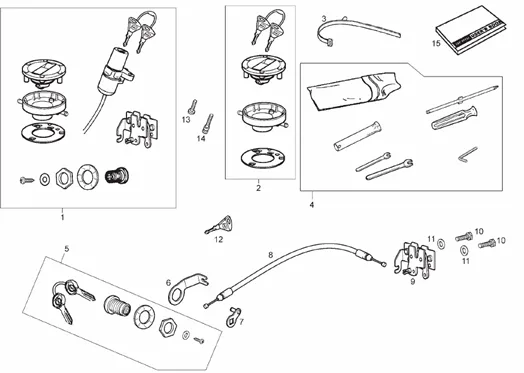

Vues éclatées : 14 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1111/Mulhacen_125_4T_E3_2007-2009_(EMEA)_14.png)
1 |
863308 - CTO.KIT CERRAD.TER125 More informationQuantity required : 1 |
||||||
|
2 |
863990-CAP More informationQuantity required : 1 |
||||||
|
3 |
863841-FLANGE FIX. TROUSSE OUTILS More informationQuantity required : 1 |
||||||
|
4 |
863540-CTO. BOLSA HERRAMTAS. MUL125 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/7/7/img/64277.jpg)
5 |
ENSEMBLE LOCK SEAT REAR OEM DERBI 50 GPR 2001 > 2013-00H00600681 More informationQuantity required : 1 |
||||||
|
6 |
863698 - SUPPORT More informationQuantity required : 1 |
||||||
|
7 |
863508-LEVER More informationQuantity required : 1 |
||||||
|
8 |
863505 - CABLE More informationQuantity required : 1 |
||||||
|
9 |
00G06801501 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/1/7/img/63617.jpg)
10 |
00002061011 - VIS A TETE CREUSE 6M100X10. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/6/img/63786.jpg)
11 |
WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001 More informationQuantity required : 1 |
||||||
|
12 |
865403 - CLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/9/img/71829.jpg)
13 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8150169 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/3/2/img/65032.jpg)
14 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-00H06300791 More informationQuantity required : 1 |
||||||
|
15 |
MANUAL DE INSTRUCC.MUL125 |
||||||
|
15 |
Livret d’util.et entret. |
