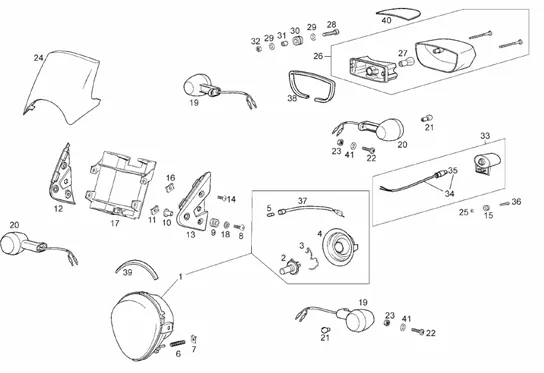

Vehicle Exploded View - DERBI MULHACEN 125 Mulhacen 125 4T E3 2007-2009 (EMEA)

	P2R reference	192913
	Maker reference	00N01000011

00N01000011 - PHARE AVANT

	P2R reference	192914
	Maker reference	862412

862412 - LAMPE (OU AMPOULE)

	P2R reference	189936
	Maker reference	862415

862415 - RESSORT

	P2R reference	192915
	Maker reference	862414

862414-PROTECTOR

	P2R reference	64379
	Maker reference	00H01003131

00H01003131-AMPOULE 12V-5W

	P2R reference	187854
	Maker reference	00G02301501

00G02301501-SPRING HEADLAMP FRONT

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	64544
	Maker reference	00H01503701

SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-00H01503701

	P2R reference	192916
	Maker reference	00D01600941

00D01600941 - SILENBLOC

	P2R reference	154579
	Maker reference	00N01001821

00N01001821-CASQ. DT. SOPTE. FARO

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	192923
	Maker reference	864806

864806 - SOPTE.LAT.FARO.DLNT.DR.MUL125 CAFE

	P2R reference	192924
	Maker reference	864807

864807 - SOPTE.LAT.FARO.DLNT.IZ.MUL125 CAFE

	P2R reference	64537
	Maker reference	00H01501701

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00H01501701

	P2R reference	154576
	Maker reference	2B005447

RUBBER GUIDE FIL OEM PIAGGIO COMMON A LA RANGE-2B005447

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	192925
	Maker reference	864805

864805-SOPTE. FARO MUL125 CAFE

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	69987
	Maker reference	863009

FLASHER- FRONT LEFT/REAR RIGHT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -863009

	P2R reference	69986
	Maker reference	863008

FRONT RIGHT INDICATOR OU REAR LEFT OEM DERBI 50 SENDA DRD 2005 > 2017/GILERA 50 SMT, RCR 2011 >-863008

	P2R reference	71603
	Maker reference	AP8127489

AMPOULE/LAMPE 12V 10W RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-AP8127489

	P2R reference	72330
	Maker reference	AP8224470

SCREW BTR HEAD BOMBEE (6X20) INOX OEM PIAGGIO COMMON A LA RANGE-AP8224470

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	192926
	Maker reference	86401800WN45

86401800WN45-R-CARCASA FARO NGR. LENT. MUL. CAFE

	P2R reference	192927
	Maker reference	86401800WR2

86401800WR2 - CARCASA FARO ROJ.DRAG.MUL A.NIETO

	P2R reference	63717
	Maker reference	000260050005

00026005000-NUT HEXAG. A/FLANGE 5M80 D6923

	P2R reference	64383
	Maker reference	00H01006321

LAMP REAR OEM DERBI 50 SENDA 2006 </GILERA 50 SMT, RCR 2006 > 2010-00H01006321

	P2R reference	64366
	Maker reference	00H01000371

AMPOULE/LAMPE 12V 21/5W BAY15D OEM PIAGGIO COMMON A LA RANGE-00H01000371

	P2R reference	63644
	Maker reference	000040535005
	Replaced by référence 71820

00004053500 - VIS A TETE ALLEN 5M80X50

	P2R reference	64840
	Maker reference	00H03800722

WASHER PLATE (5, 3X15X1) OEM PIAGGIO COMMON A LA RANGE-00H03800722

	P2R reference	65051
	Maker reference	00H06800461

RUBBER MOUNT OF FITTING KIT LAMP REAR OEM PIAGGIO GILERA 50 50 SMT, RCR/DERBI 50 SENDA 2000 > 2010-00H06800461

	P2R reference	64376
	Maker reference	00H01002821

SPACER OF REAR LIGHT OU BRAKE MASTER CYLINDER REAR OEM PIAGGIO 50 GILERA SMT 2006/DERBI SENDA 2000 > 2010/APRILIA RS 2006 > 2010-00H01002821

	P2R reference	63589
	Maker reference	000000230505

NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-00000023050

	P2R reference	64135
	Maker reference	00G05701471

00G05701471-TUBE PHARES

	P2R reference	64029
	Maker reference	00G02300581

00G02300581-LAMP REGISTRE

	P2R reference	64379
	Maker reference	00H01003131

00H01003131-AMPOULE 12V-5W

	P2R reference	63653
	Maker reference	000042516005

00004251600 - VIS TETE CREUSE 5M100X16

	P2R reference	192921
	Maker reference	862413

862413 - CABLE

	P2R reference	189180
	Maker reference	00A01500352

00A01500352 - ENJOLIVEUR SUP.NOIR AVANT CADR

	P2R reference	64994
	Maker reference	00H05700101

00H05700101-BUTEE HEADLAMP

	P2R reference	192922
	Maker reference	864585

864585 - ARRET

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171
