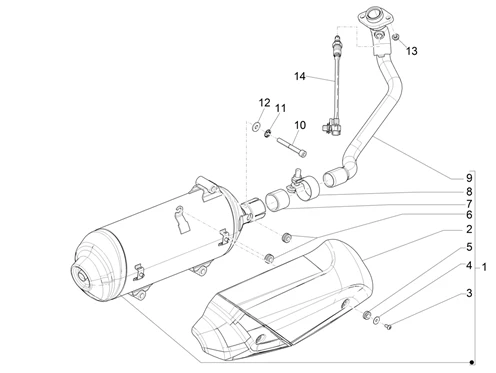

Vehicle Exploded View - PIAGGIO MEDLEY 125 4T ie ABS E4 2020 (EMEA) PIAGGIO

Moteur : 01.42 SILENCIEUX
Silencieux
Search
1A0146045 - POT D'ECHAPPEMENT AVEC PROTECTION

1
P2R reference P2R reference 172097
Maker reference Maker reference 1A0146045

1A0146045 - POT D'ECHAPPEMENT AVEC PROTECTION

More information

Quantity required : 1

1A017253 - PROTECTION

2
P2R reference P2R reference 162784
Maker reference Maker reference 1A017253

1A017253 - PROTECTION

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -651014

3
P2R reference P2R reference 68173
Maker reference Maker reference 651014

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -651014

More information

Quantity required : 2

EXHAUST FLAT WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -827526

4
P2R reference P2R reference 68676
Maker reference Maker reference 827526

EXHAUST FLAT WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -827526

More information

Quantity required : 2

FAIRLEAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -487665

5
P2R reference P2R reference 66744
Maker reference Maker reference 487665

FAIRLEAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -487665

More information

Quantity required : 2

B013302 - PASSECABLES

6
P2R reference P2R reference 94506
Maker reference Maker reference B013302

B013302 - PASSECABLES

More information

Quantity required : 2

GRAPHITE BUSHING FOR SILENCER "PIAGGIO GENUINE PART" PIAGGIO 125-250-300 MP3, VESPA GTS, BEVERLY, X8, X9, X7, X-EVOGILERA 125-250-300 NEXUS/APRILIA 125-250 ATLANTIC, SPORT-CITY, SR-MAX -8263885

7
P2R reference P2R reference 68596
Maker reference Maker reference 8263885

GRAPHITE BUSHING FOR SILENCER "PIAGGIO GENUINE PART" PIAGGIO 125-250-300 MP3, VESPA GTS, BEVERLY, X8, X9, X7, X-EVOGILERA 125-250-300 NEXUS/APRILIA 125-250 ATLANTIC, SPORT-CITY, SR-MAX -8263885

More information

Quantity required : 1

SILENCER CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE 125-250-300 -8449404

8
P2R reference P2R reference 69333
Maker reference Maker reference 8449404

SILENCER CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE 125-250-300 -8449404

More information

Quantity required : 1

1A016517 - EXHAUST MANIFOLD WITH I P

9
P2R reference P2R reference 162785
Maker reference Maker reference 1A016517

1A016517 - EXHAUST MANIFOLD WITH I P

More information

Quantity required : 1

SCREW - FOR EXHAUST MOUNTING "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, TYPHOON, ZIP/GILERA 50 STALKER, DNA -845590

10
P2R reference P2R reference 69354
Maker reference Maker reference 845590

SCREW - FOR EXHAUST MOUNTING "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, TYPHOON, ZIP/GILERA 50 STALKER, DNA -845590

More information

Quantity required : 3

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187

11
P2R reference P2R reference 69107
Maker reference Maker reference 834187

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187

More information

Quantity required : 3

848452 - RONDELLE

12
P2R reference P2R reference 69570
Maker reference Maker reference 848452

848452 - RONDELLE

More information

Quantity required : 3

NUT - TO HEAD/EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -436947

13
P2R reference P2R reference 66509
Maker reference Maker reference 436947

NUT - TO HEAD/EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -436947

More information

Quantity required : 2

1A014335 - LAMBDA SENSOR

14
P2R reference P2R reference 171615
Maker reference Maker reference 1A014335

1A014335 - LAMBDA SENSOR

More information

Quantity required : 1
