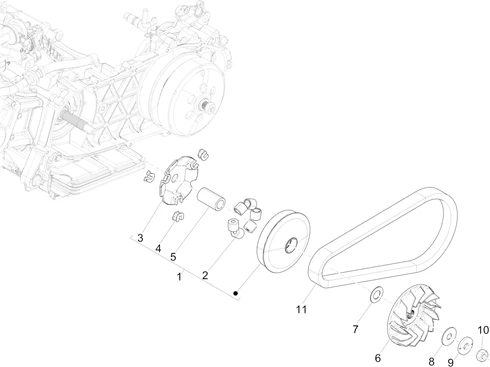

Vehicle Exploded View - PIAGGIO MEDLEY 125 4T ie ABS E4 2020 (EMEA) PIAGGIO

Moteur : 01.13 POULIE MOTRICE
Poulie motrice
Search
CM257710 - BOITIER A ROULEAUX COMPLETE

1
P2R reference P2R reference 172093
Maker reference Maker reference CM257710
Replaced by référence Replaced by référence 216366

CM257710 - BOITIER A ROULEAUX COMPLETE

More information

Quantity required : 1

CM284809 - BOITIER A ROULEAUX COMPLETE

1
P2R reference P2R reference 216366
Maker reference Maker reference CM284809

CM284809 - BOITIER A ROULEAUX COMPLETE

More information

Quantity required : 1

GALET/ROULEAU ORIGINE PIAGGIO 125 MEDLEY 2020> (VENDU A L'UNITE) -CM308506

2
P2R reference P2R reference 208389
Maker reference Maker reference CM308506

GALET/ROULEAU ORIGINE PIAGGIO 125 MEDLEY 2020> (VENDU A L'UNITE) -CM308506

More information

Quantity required : 6

GALET/ROULEAU ORIGINE PIAGGIO 125 MEDLEY 2020> (VENDU A L'UNITE) -CM308506

2
P2R reference P2R reference 208389
Maker reference Maker reference 1A017025

GALET/ROULEAU ORIGINE PIAGGIO 125 MEDLEY 2020> (VENDU A L'UNITE) -CM308506

More information

Quantity required : 6

VARIATOR ROLLER CONTRAST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -485710

3
P2R reference P2R reference 66690
Maker reference Maker reference 485710

VARIATOR ROLLER CONTRAST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -485710

More information

Quantity required : 1

1A015664 - PATIN

4
P2R reference P2R reference 203871
Maker reference Maker reference 1A015664

1A015664 - PATIN

More information

Quantity required : 3

1A015664 - PATIN

4
P2R reference P2R reference 203871
Maker reference Maker reference B017219

1A015664 - PATIN

More information

Quantity required : 3

483889 - ENTRETOISE

5
P2R reference P2R reference 66648
Maker reference Maker reference 483889

483889 - ENTRETOISE

More information

Quantity required : 1

DRIVING HALF PULLEY "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC INJECTION -876921

6
P2R reference P2R reference 70638
Maker reference Maker reference 876921

DRIVING HALF PULLEY "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC INJECTION -876921

More information

Quantity required : 1

1A007071 - RONDELLE PLATE

7
P2R reference P2R reference 146249
Maker reference Maker reference 1A007071

1A007071 - RONDELLE PLATE

More information

Quantity required : 1

840533 - JOINT

8
P2R reference P2R reference 69153
Maker reference Maker reference 840533

840533 - JOINT

More information

Quantity required : 1

DRIVING PULLEY SPRING WASHER "PIAGGIO GENUINE PART"COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -880950

9
P2R reference P2R reference 70743
Maker reference Maker reference 880950

DRIVING PULLEY SPRING WASHER "PIAGGIO GENUINE PART"COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -880950

More information

Quantity required : 1

NUT - FOR DRIVEN PULLEY "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -486324

10
P2R reference P2R reference 66709
Maker reference Maker reference 486324

NUT - FOR DRIVEN PULLEY "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -486324

More information

Quantity required : 1

1A011455 - COURROIE

11
P2R reference P2R reference 162765
Maker reference Maker reference 1A011455

1A011455 - COURROIE

More information

Quantity required : 1
