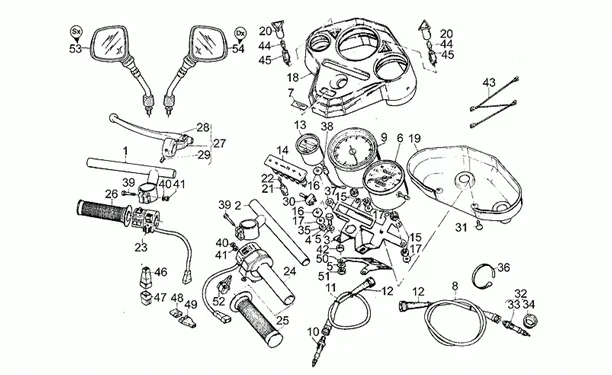

Chassis : 33.09 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/495/Le_Mans_III_850_1981-1984_33.09.PNG)
1 |
|
||||||
|
2 |
|
||||||
|
3 |
GU28764050 - PLAQUE More informationQuantity required : 1 |
||||||
|
4 |
GU98052470 - VIS More informationQuantity required : 2 |
||||||
|
5 |
GU95000208-WASHER More informationQuantity required : 4 |
||||||
|
6 |
|
||||||
|
7 |
"Décalco ""Aquila""" |
||||||
|
8 |
Câble compteur |
||||||
|
9 |
|
||||||
|
10 |
GU14769200 - RENVOI Z=14 More informationQuantity required : 1 |
||||||
|
11 |
GU28768150 - TRANSMISSION COMPTE-TOURS More informationQuantity required : 1 |
||||||
|
12 |
GU17762200 - GAINE More informationQuantity required : 2 |
||||||
|
13 |
|
||||||
|
14 |
|
||||||
|
15 |
RONDELLE DE CALAGE |
||||||
|
16 |
GU17783960-WASHER DE CALAGE More informationQuantity required : 7 |
||||||
|
17 |
|
||||||
|
18 |
|
||||||
|
19 |
|
||||||
|
20 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/7/0/5/img/129705.jpg)
21 |
BULB HOLDER - DASHBOARD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU19768680 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/0/img/65760.jpg)
22 |
AMPOULE/LAMPE 12V 1, 2W CULOT W2X4. 6D BULB T5 TEMOIN WHITE OEM PIAGGIO COMMON A LA RANGE-164634 More informationQuantity required : 6 |
||||||
|
23 |
Déviateur feux gche |
||||||
|
24 |
|
||||||
|
25 |
Poignée dr. |
||||||
|
26 |
GU14603000-GRIP GC. More informationQuantity required : 1 |
||||||
|
27 |
GU19605501 - COMMANDE LEVIER EMBRAYAGE More informationQuantity required : 1 |
||||||
|
28 |
GU19605501 - COMMANDE LEVIER EMBRAYAGE More informationQuantity required : 1 |
||||||
|
29 |
GU98622318 - VIS M6X18 More informationQuantity required : 1 |
||||||
|
30 |
|
||||||
|
31 |
|
||||||
|
32 |
GU14762510 - RENVOI Z5/11 More informationQuantity required : 1 |
||||||
|
33 |
|
||||||
|
34 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/0/0/img/132500.jpg)
35 |
NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-GU92630105 More informationQuantity required : 2 |
||||||
|
36 |
GU49609601-CLAMP 2, 4X92 More informationQuantity required : 4 |
||||||
|
37 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/9/img/66269.jpg)
38 |
AMPOULE/LAMPE 12V 3W W2, 1X9, 5D OEM PIAGGIO COMMON A LA RANGE-294131 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/1/2/3/5/img/141235.jpg)
39 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-GU98620335 More informationQuantity required : 4 |
||||||
|
40 |
GU95001205-WASHER More informationQuantity required : 4 |
||||||
|
41 |
GU92630106-NUT M6X1 More informationQuantity required : 4 |
||||||
|
42 |
GU91180809-SPACER More informationQuantity required : 2 |
||||||
|
43 |
|
||||||
|
44 |
AMPOULE/LAMPE 12V 3W W2, 1X9, 5D OEM PIAGGIO COMMON A LA RANGE-294131 More informationQuantity required : 2 |
||||||
|
45 |
|
||||||
|
46 |
GU35755780 - CAPUCHON More informationQuantity required : 1 |
||||||
|
47 |
GU61740551 - CONNECTEUR More informationQuantity required : 1 |
||||||
|
48 |
GU17756060 - CAPUCHON More informationQuantity required : 1 |
||||||
|
49 |
GU17756160 - CONNECTEUR More informationQuantity required : 1 |
||||||
|
50 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/1/img/132561.jpg)
51 |
NUT BORGNE (D8) OEM PIAGGIO COMMON A LA RANGE-GU92781081 More informationQuantity required : 2 |
||||||
|
52 |
|
||||||
|
53 |
|
||||||
|
54 |
|
