Vehicle Exploded View - MOTO-GUZZI LE MANS 850 Le Mans III 850 1981-1984
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

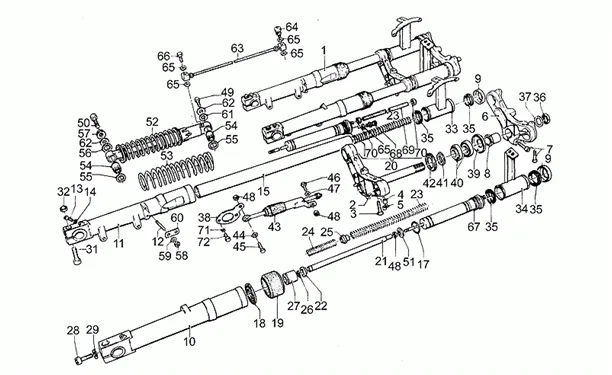

Chassis : 33.04 FOURCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/495/Le_Mans_III_850_1981-1984_33.04.PNG)
1 |
|
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
2 |
|
||||||
|
3 |
GU98072555 - VIS More informationQuantity required : 2 |
||||||
|
4 |
GU91181016 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
5 |
GU95007210-WASHER More informationQuantity required : 2 |
||||||
|
6 |
|
||||||
|
7 |
GU98612535 - VIS More informationQuantity required : 3 |
||||||
|
8 |
GU18516660 - DOUILLE ET PIGNON More informationQuantity required : 1 |
||||||
|
9 |
|
||||||
|
10 |
BAS DE FOURCHE |
||||||
|
10 |
BAS DE FOURCHE |
||||||
|
10 |
|
||||||
|
11 |
|
||||||
|
11 |
|
||||||
|
11 |
|
||||||
|
12 |
GU96508021-SCREW WITHOUT HEAD More informationQuantity required : 4 |
||||||
|
13 |
GU98682312-SCREW TCEI M6X12 More informationQuantity required : 2 |
||||||
|
14 |
GU95100116-WASHER More informationQuantity required : 2 |
||||||
|
15 |
Bras fourche |
||||||
|
17 |
GU90706238 - BAGUE D'ETANCHEITE More informationQuantity required : 2 |
||||||
|
18 |
GU90403449 - JOINT SPI More informationQuantity required : 2 |
||||||
|
19 |
GU14524500 - PARE-POUSSIERE More informationQuantity required : 2 |
||||||
|
20 |
|
||||||
|
21 |
GU14527800 - TUBE More informationQuantity required : 2 |
||||||
|
22 |
|
||||||
|
23 |
|
||||||
|
24 |
GU18526660 - CONTRE-RESSORT More informationQuantity required : 2 |
||||||
|
25 |
GU18527960 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
26 |
GU90271014-BUSH SEEGER More informationQuantity required : 2 |
||||||
|
27 |
|
||||||
|
28 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/9/7/img/129097.jpg)
29 |
GASKET CAP DE VIDANGE OEM PIAGGIO FOR MOTORCYCLE-GUZZI 850 CALIFORNIA 1985 >, 1100 CALIFORNIA 1994 >, 750 V7 2008 >, NEVADA 2012 >, V9 2016 >, V11 2001 >, V100-GU10528900 More informationQuantity required : 2 |
||||||
|
31 |
GU98620540-SCREW M10X40 More informationQuantity required : 2 |
||||||
|
32 |
GU92781100 - ECROU More informationQuantity required : 2 |
||||||
|
33 |
|
||||||
|
34 |
|
||||||
|
35 |
GU17492700 - BAGUE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/3/6/img/129436.jpg)
36 |
NUT SERRAGE PLATINE SUPERIEURE DE FORK OEM PIAGGIO MOTO-GUZZI 750 NEVADA, STRADA, TARGA, V35, V50, V65, V75, 1000 LE-MANS, GT, CALIFORNIA-GU18513460 More informationQuantity required : 1 |
||||||
|
37 |
GU18513560-WASHER CAP FOURREAU More informationQuantity required : 1 |
||||||
|
38 |
|
||||||
|
39 |
GU14494600 - COUPELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/3/2/img/108532.jpg)
40 |
BEARING DE COLONNE DE STEERING OEM PIAGGIO MOTO-GUZZI 750 BREVIA, NEVADA, V7, 940 BELLAGIO, 1000 DAYTONA, LE-MANS, V10, 1100 V11, CALIFORNIA, SPORT-GU92249225 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/6/0/img/129260.jpg)
41 |
GU14516700 - RONDELLE D'APPUI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/6/1/img/129261.jpg)
42 |
PROTECTOR-POUSSIERE DE SET OF STEERING OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU14517000 More informationQuantity required : 1 |
||||||
|
43 |
GU03530270 - AMORTISSEUR DE DIRECTION More informationQuantity required : 1 |
||||||
|
44 |
GU95100123-WASHER More informationQuantity required : 1 |
||||||
|
45 |
GU98052325 - VIS More informationQuantity required : 1 |
||||||
|
46 |
GU98054320-SCREW M6X20 More informationQuantity required : 1 |
||||||
|
47 |
GU95000206-WASHER More informationQuantity required : 2 |
||||||
|
48 |
GU92630106-NUT M6X1 More informationQuantity required : 3 |
||||||
|
49 |
Vis |
||||||
|
50 |
|
||||||
|
51 |
Rondelle nylon |
||||||
|
52 |
|
||||||
|
53 |
|
||||||
|
54 |
GU14551655 - SILENTBLOC More informationQuantity required : 4 |
||||||
|
55 |
GU95004215 - RONDELLE PLATE More informationQuantity required : 4 |
||||||
|
56 |
GU95100337 - RONDELLE More informationQuantity required : 2 |
||||||
|
57 |
GU92602210 - ECROU More informationQuantity required : 2 |
||||||
|
58 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
59 |
WASHER ELASTIC (8X15X0. 3) OEM PIAGGIO COMMON A LA RANGE-GU61270300 More informationQuantity required : 4 |
||||||
|
60 |
PLAQUETTE |
||||||
|
61 |
GU95100239-WASHER More informationQuantity required : 2 |
||||||
|
62 |
GU95100524-WASHER More informationQuantity required : 4 |
||||||
|
63 |
Tuyau |
||||||
|
64 |
GU28556250-VALVE AIR More informationQuantity required : 1 |
||||||
|
65 |
GU28556350 - RONDELLE EN CUIVRE More informationQuantity required : 5 |
||||||
|
66 |
GU28556450-SCREW PERCEE More informationQuantity required : 1 |
||||||
|
67 |
|
||||||
|
68 |
SOUPAPE A AIR |
||||||
|
69 |
TUYAU |
||||||
|
70 |
|
||||||
|
71 |
Rondelle évent. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/7/img/132927.jpg)
72 |
SCREW TH (6X14) OEM PIAGGIO COMMON A LA RANGE-GU98084314 More informationQuantity required : 2 |
