Vehicle Exploded View - MOTO-GUZZI LE MANS 1000 1983-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

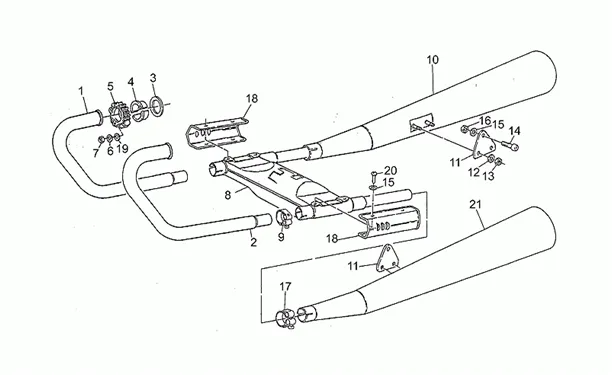

Chassis : 33.39 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/494/Le_Mans_1000_1983-1994_33.39.PNG)
1 |
|
||||||
|
1 |
|
||||||
|
2 |
|
||||||
|
2 |
GU28120961 - TUYAU D ECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/5/0/1/img/125501.jpg)
3 |
GASKET EXHAUST SORTIE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU90718370 More informationQuantity required : 2 |
||||||
|
4 |
GU14121200 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
5 |
Bride |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
6 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 4 |
||||||
|
7 |
Ecrou borgne |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/1/img/132561.jpg)
7 |
NUT BORGNE (D8) OEM PIAGGIO COMMON A LA RANGE-GU92781081 More informationQuantity required : 4 |
||||||
|
8 |
CHAMBRE DE DETENDE |
||||||
|
9 |
GU30123430 - COLLIER More informationQuantity required : 2 |
||||||
|
9 |
GU28126960-CLAMP More informationQuantity required : 2 |
||||||
|
10 |
|
||||||
|
10 |
SILENCIEUX |
||||||
|
11 |
PLAQUE |
||||||
|
12 |
GU95021108-WASHER ELASTIC More informationQuantity required : 4 |
||||||
|
13 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 4 |
||||||
|
14 |
GU98822425 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
15 |
WASHER ELASTIC (8X15X0. 3) OEM PIAGGIO COMMON A LA RANGE-GU61270300 More informationQuantity required : 6 |
||||||
|
16 |
NUT BORGNE (D8) OEM PIAGGIO COMMON A LA RANGE-GU92781081 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/1/6/img/129216.jpg)
17 |
CLAMP EXHAUST OEM MOTO-GUZZI 850 T3, 1000 CALIFORNIA, LE MANS, SP-GU14123400 More informationQuantity required : 2 |
||||||
|
17 |
COLLIER |
||||||
|
18 |
|
||||||
|
18 |
Protection |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/7/8/img/132678.jpg)
19 |
GU95007208 - RONDELLE More informationQuantity required : 4 |
||||||
|
20 |
GU98326009-SCREW More informationQuantity required : 4 |
||||||
|
21 |
|
||||||
|
21 |
SILENCIEUX |
