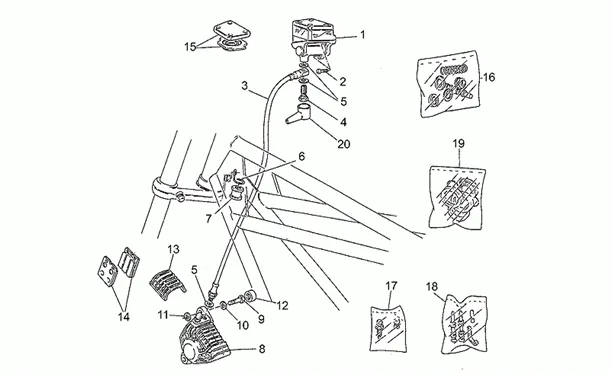

Chassis : 33.24 POMPE FREIN AV SERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/494/Le_Mans_1000_1983-1994_33.24.PNG)
1 |
POMPE FREIN |
||||||
|
2 |
GU98622214-SCREW More informationQuantity required : 2 |
||||||
|
3 |
GU28657140 - TUYAU FLEXIBLE More informationQuantity required : 1 |
||||||
|
4 |
GU95990028 - VIS TUYAU HUILE * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/9/img/129949.jpg)
5 |
WASHER HOSE BRAKE (10X1. 5X1) OEM MOTO GUZZI COMMON A LA RANGE-GU25656100 More informationQuantity required : 2 |
||||||
|
6 |
COLLIER |
||||||
|
7 |
GU91551120 - BAGUE More informationQuantity required : 1 |
||||||
|
8 |
GU28653001 - ETRIER AR More informationQuantity required : 1 |
||||||
|
9 |
GU98054525 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/3/img/132753.jpg)
10 |
WASHER AJUSTEMENT (10. 5X18X0. 8) OEM MOTO GUZZI-GU95129180 More informationQuantity required : 2 |
||||||
|
11 |
GU95100332-WASHER D'APPUI 0, 5 MM More informationQuantity required : 1 |
||||||
|
11 |
GU95100333 - RONDELLE D'APPUI 0,8 MM More informationQuantity required : 1 |
||||||
|
12 |
Bouchon |
||||||
|
13 |
Couvercle pince frein |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/2/5/4/img/130254.jpg)
14 |
BRAKE PAD OEM PIAGGIO CALIFORNIA, S, SP MOTO GUZZI-GU28654601 More informationQuantity required : 1 |
||||||
|
15 |
Couvercle |
||||||
|
16 |
Kit révision pompe frein |
||||||
|
17 |
GU17659260 - PURGE+CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/7/3/img/129273.jpg)
18 |
PINS+CALIPER SPRINGS "PIAGGIO GENUINE PART" MOTO-GUZZI 1000 LE-MANS, SP, STRADA, 850 T3, 1100 CALIFORNIA -GU14659100 More informationQuantity required : 1 |
||||||
|
19 |
KIT REVISION BRAKE CALIPER OEM PIAGGIO MOTO-GUZZI 850 T3, T5, 1000 LE-MANS, STRADA, 1000-1000 CALIFORNIA-GU14659000 More informationQuantity required : 1 |
||||||
|
20 |
GU39663801-CAPUCHON More informationQuantity required : 1 |
