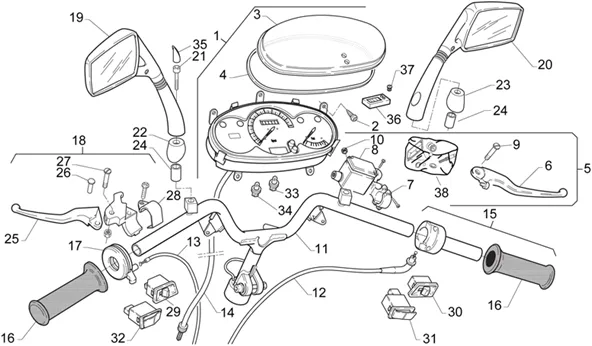

Chassis : 28.06 GUIDON-TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/244/Gulliver_50_H20_1996-1998_28.06.PNG)
1 |
T.D.B. GULL = 8212817 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
2 |
SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421 More informationQuantity required : 5 |
||||||
|
3 |
AP8212809-VITRE PANEL DE EDGE More informationQuantity required : 1 |
||||||
|
4 |
AP8220555 - JOINT More informationQuantity required : 1 |
||||||
|
5 |
Maît. cyl. frein AV |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/6/5/1/img/56651.jpg)
6 |
BRAKE LEVER FRONT OEM APRILIA 50-125 MOJITO 1999 > 2003-AP8218288 More informationQuantity required : 1 |
||||||
|
7 |
AP8113637-CAVALIER LEVER BRAKE More informationQuantity required : 1 |
||||||
|
8 |
AP8213272-COVER TANK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/6/img/71576.jpg)
9 |
AP8125757-SCREW LEVER More informationQuantity required : 1 |
||||||
|
10 |
AP8113414 - HUBLOT POMPE FREIN More informationQuantity required : 1 |
||||||
|
11 |
AP8218165 - GUIDON PEINT; More informationQuantity required : 1 |
||||||
|
12 |
AP8214160 - CABLE GAZ; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/5/5/3/img/56553.jpg)
13 |
CHOKE TRANSMISSION CABLE "PIAGGIO GENUINE PART" APRILIA 50 RALLY, GULLIVER, SR -AP8214159- More informationQuantity required : 1 |
||||||
|
14 |
Câble compteur km; |
||||||
|
15 |
AP8218252 - COMMANDE GAZ+POIGNEE GRISE; More informationQuantity required : 1 |
||||||
|
15 |
Commande gaz+man rouge; |
||||||
|
15 |
Commande gaz+man noire/chr.; |
||||||
|
16 |
GRIPS(PAIR) "PIAGGIO GENUINE PART" APRILIA 50 RALLYE, AMICO, GULLIVER, SR 1996> -AP8218275- More informationQuantity required : 1 |
||||||
|
16 |
Couple manettes, rouge; |
||||||
|
16 |
Couple manettes, noir; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/8/img/72188.jpg)
17 |
CONTROL STARTER OEM PIAGGIO APRILIA 50 RALLY, RX, SX, GULLIVER, AMICO, SR/DERBI 50 SENDA 2008 > 2010-AP8212529 More informationQuantity required : 1 |
||||||
|
18 |
AP8218236 - LEVIER FREIN ARRIERE; More informationQuantity required : 1 |
||||||
|
19 |
MIRROR- LEFT "PIAGGIO GENUINE PART" APRILIA 50 SR, AMICO, GULLIVER -AP8201976 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/4/1/1/img/55411.jpg)
20 |
RIGHT MIRROR OEM PIAGGIO APRILIA 50 SR 1993 > 2012, AMICO 1994 > 1998, GULLIVER 1995 > 1998-AP8201975 More informationQuantity required : 1 |
||||||
|
21 |
AP8152073-SCREW More informationQuantity required : 2 |
||||||
|
22 |
Base rétroviseur G; |
||||||
|
23 |
AP8220430 - BASE RETROVISEUR D; More informationQuantity required : 1 |
||||||
|
24 |
AP8221235 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/6/4/8/img/56648.jpg)
25 |
BRAKE LEVER SCOOT OEM PIAGGIO APRILIA 50 SR 1996 > 1999 AR-AP8218274 More informationQuantity required : 1 |
||||||
|
26 |
Encliquetage; |
||||||
|
27 |
Pivot levier frein; |
||||||
|
28 |
AP8218154 - CAVALIER LEVIER FREIN; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/1/6/img/56316.jpg)
29 |
BUTTON/CONTACTEUR INDICATOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 APRILIA 1995 > 2009-AP8215767 More informationQuantity required : 1 |
||||||
|
30 |
Pous. feux 2 voies |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/4/8/img/47448.jpg)
31 |
BUTTON/CONTACTEUR DE STARTER MOTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 APRILIA 1995 > 2009-AP8124208 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/4/9/img/47449.jpg)
32 |
BUTTON/CONTACTEUR AVERTISSEUR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 APRILIA 1995 > 2009-AP8124209 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/5/9/img/56259.JPG)
33 |
DOOR AMPOULE 12V 1. 2 W OEM APRILIA-AP8212407 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/6/0/img/56260.JPG)
34 |
DOOR-AMPOULE COMPLETE-AP8212408 More informationQuantity required : 1 |
||||||
|
35 |
AP8202071-CAP RETRO DTE + GCHE More informationQuantity required : 1 |
||||||
|
35 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/7/img/72187.jpg)
36 |
HORLOGE/MONTRE OEM PIAGGIO 50-125 VESPA LX, VESPA-S, LIBERTY, 125-250-300 VESPA GTS, X7, THREE-WHEELER APE 50/APRILIA 125-250-300-400-500 ATLANTIC, 125 SCARABEO/GILERA 50 STAKER-AP8212406 More informationQuantity required : 1 |
||||||
|
37 |
AP8212405-RUBBER HORLOGE More informationQuantity required : 1 |
||||||
|
38 |
Kit révision pompe |
