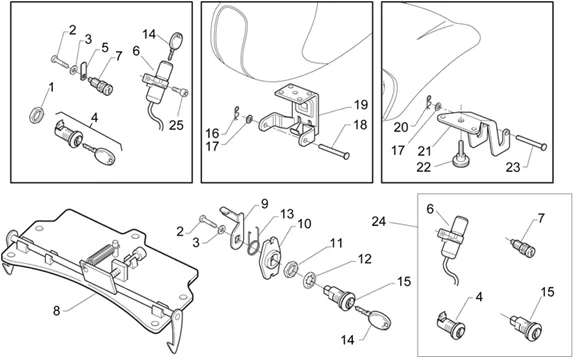

Vehicle Exploded View - APRILIA GULLIVER 50 H20 1996-1998

	P2R reference	71184
	Maker reference	AP8102523

NUT LOCK (M22 X 1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8102523

	P2R reference	72141
	Maker reference	AP8201749

SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-AP8201749

	P2R reference	55385
	Maker reference	AP8201748

WASHER EVENTAIL MOUNTING CROCHET DE LOCK OEM PIAGGIO APRILIA ATLANTIC 125-250-500 2003 > 2012, RS 125 2011 > 2017, RS 50 2006 > 2016, SR 50 1993 > 2014-AP8201748

	P2R reference	71233
	Maker reference	AP8104612

GLOVE BOX LOCK "PIAGGIO GENUINE PART" 50 GULLIVER, MOJITO, 125-250 ATLANTIC, SPORT-CITY -AP8104612

	P2R reference
	Maker reference	AP8201736

Plaque serr. ess.

	P2R reference	55372
	Maker reference	AP8201600

ELECTRIC STARTER "PIAGGIO GENUINE PART" APRILIA 50 SR, RALLY, GULLIVER -AP8201600-

	P2R reference	55401
	Maker reference	AP8201848

AP8201848 - SERRURE TRAPPE ESS.;

	P2R reference
	Maker reference	AP8201958

Crochet des.selle cpl

	P2R reference
	Maker reference	AP8234353

Plaque serr. selle;

	P2R reference
	Maker reference	AP8220424

Entretoise serr. selle;

	P2R reference	50968
	Maker reference	AP8152194

NUT BAS (M19X1) OEM PIAGGIO COMMON A LA RANGE-AP8152194

	P2R reference	57054
	Maker reference	AP8221312

WASHER EVENTAIL (D 19) DE LOCK OEM PIAGGIO COMMON A LA RANGE-AP8221312

	P2R reference
	Maker reference	AP8221226

Ressort serrure

	P2R reference	45423
	Maker reference	AP8104613

EBAUCHE DE CLE FRAISEE WITHOUT TRANSPONDEUR OEM APRILIA COMMON A LA RANGE-AP8104613

	P2R reference	45421
	Maker reference	AP8104609

KIT LOCK HATCH FUEL OEM PIAGGIO APRILIA 125 ATLANTIC, CLASSIC, EUROPA, LEONARDO, 50 RS-AP8104609

	P2R reference	72133
	Maker reference	AP8201431

GOUPILLE (20X1. 2) OEM PIAGGIO COMMON A LA RANGE-AP8201431

	P2R reference	71406
	Maker reference	AP8120592

WASHER PLATE (D5) OEM PIAGGIO COMMIUN A LA RANGE-AP8120592

	P2R reference
	Maker reference	AP8231671

Pivot charnière selle;

	P2R reference
	Maker reference	AP8231670

Attache struct.selle;

	P2R reference	72138
	Maker reference	AP8201643

GOUPILLE OEM PIAGGIO COMMON A LA RANGE/SPINDLE HATCH FUEL DERBI 50 SENDA 2018 >-AP8201643

	P2R reference
	Maker reference	AP8232930

Charnière coffre arrière;

	P2R reference
	Maker reference	AP8201461

Pommeau fileté;

	P2R reference
	Maker reference	AP8231697

Broche charn.cof.AR;

	P2R reference	55384
	Maker reference	AP8201732

AP8201732 - KIT SERRURE

	P2R reference
	Maker reference	AP8101630

Vis à arrachement
