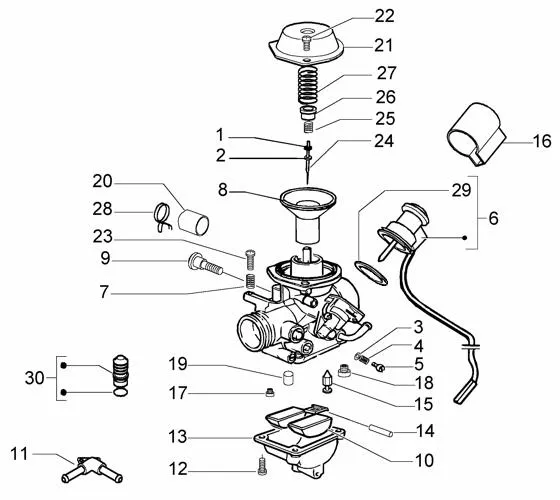

Moteur : T19 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/723/Granturismo_200_L_1998-2005_T19.PNG)
1 |
826822 - CIRCLIPS More informationQuantity required : 1 |
||||||
|
2 |
826821 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/2/7/img/68627.jpg)
3 |
826843 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/2/6/img/68626.jpg)
4 |
826839 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/9/5/img/73095.jpg)
5 |
CARB AIR SCREW "PIAGGIO GENUINE PARTS" COMMUN A LA GAMME 125 CC 1998>2004 -CM106402 More informationQuantity required : 1 |
||||||
|
6 |
CM129802 - DISPOSITIF WALBRO More informationQuantity required : 1 |
||||||
|
6 |
CM142903-STARTER More informationQuantity required : 1 |
||||||
|
7 |
826825-SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/5/0/img/73150.jpg)
8 |
BOISSEAU FOR CARBURETTOR WALBRO OEM PIAGGIO 125 X9, BEVERLY, X8, VESPA GRANTURIMO 1998 > 2005/GILERA 125 DNA, RUNNER 1998 > 2005/APRILIA 125-250 ATLANTIC, SCARABEO, 125 SPORT-CITY-CM129701 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/7/2/img/73172.jpg)
8 |
BOISSEAU OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T EN ALUMINIUM WITH MEPLAT FOR CARBURETTOR KEIHIN-CM140301 More informationQuantity required : 1 |
||||||
|
9 |
826826-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/8/img/68618.jpg)
10 |
FLOTTEUR OEM PIAGGIO COMMON A LA RANGE MAXISCOOTEUR 125-826812 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/4/1/img/69241.jpg)
10 |
CARBURETTOR FLOAT OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC-842522 More informationQuantity required : 1 |
||||||
|
11 |
828742 - RECHAFFEUR More informationQuantity required : 1 |
||||||
|
11 |
842516-KIT RECHAUFFEUR More informationQuantity required : 1 |
||||||
|
12 |
826770 - VIS More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/4/2/img/69242.jpg)
13 |
FLOAT BOWL GASKET FOR CARBURETTOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-842523 More informationQuantity required : 1 |
||||||
|
13 |
CUVETTE |
||||||
|
14 |
Goupille |
||||||
|
15 |
826786 - POINTEAU ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/4/8/img/73248.jpg)
15 |
POINTEAU OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T ET MAXI SCOOTER 125 CC-CM147102 More informationQuantity required : 1 |
||||||
|
16 |
826866 - COUVERCLE More informationQuantity required : 1 |
||||||
|
16 |
CAPUCHON DE STARTER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-828844 More informationQuantity required : 1 |
||||||
|
17 |
CM105303 - GIGLEUR MIN 33 More informationQuantity required : 1 |
||||||
|
17 |
CM140102-GICLEUR MIN 38 More informationQuantity required : 1 |
||||||
|
18 |
CM105410-JET MAXIMUM More informationQuantity required : 1 |
||||||
|
18 |
CM129902 - GIGLER MAXI 92 More informationQuantity required : 1 |
||||||
|
19 |
Cache |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/0/img/69200.jpg)
20 |
CAPUCHON/PRISE D'AIR OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-841695 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/4/img/68674.jpg)
21 |
GAS VALVE COVER "PIAGGIO GENUINE PART" 8769925 125 CC 1998>2005 -827467- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/6/8/img/70668.jpg)
21 |
CARBURETTOR TOP CAP OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-877764 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/4/img/68614.jpg)
22 |
SCREW - FOR CARB COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -826780 More informationQuantity required : 5 |
||||||
|
23 |
826824-SCREW More informationQuantity required : 1 |
||||||
|
24 |
CM106506 - POINTEAU CON. More informationQuantity required : 1 |
||||||
|
24 |
CM140201-POINTEAU CON. More informationQuantity required : 1 |
||||||
|
25 |
Ressort |
||||||
|
26 |
Rondelle d'ar |
||||||
|
27 |
CM107902 - RESSORT SOUPAPE M20-180 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/7/img/72897.jpg)
28 |
CLAMP (15MM) SERRAGE HOSE OEM PIAGGIO COMMON A LA RANGE-CM002916 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/8/8/img/68788.jpg)
29 |
PLATE OF CARBURETTOR OEM 50-125-200 COMMON A LA RANGE 2016 <-2828843 More informationQuantity required : 1 |
||||||
|
30 |
SET MANCHON CARBURATEUR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
31 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 1 |
