Vehicle Exploded View - VESPA VESPA GT 200 Granturismo 200 L 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

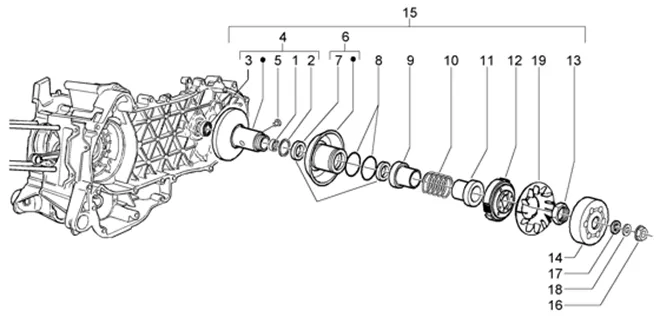

Moteur : T10 POULIE ENTRAINEE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/723/Granturismo_200_L_1998-2005_T10.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/2/3/img/68523.jpg)
1 |
CAGE A AIGUILLES (20X29X18) DE TORQUE DRIVER OF TORQUE MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-82518R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/9/img/66629.jpg)
2 |
CLIPS/CICLIPS DE PULLEY ENTRAINEE OEM PIAGGIO 125-250-300-483226 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/7/img/68677.jpg)
3 |
BEARING (17X30X7) DE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE MAXISCOOTEUR 125-250-300-82753R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/2/9/img/156029.jpg)
4 |
HALF PULLEY FIXE RECEPTRICE OEM PIAGGIO 250-300 MP3, BEVERLY, YOURBAN, X7, VESPA GTS, 250 X9, X8, X-EVO/GILERA 250-300 NEXUS/APRILIA 125-250-300 ATLANTIC, SCARABEO-1A013202 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/2/img/68772.jpg)
5 |
SHAFT OF GUIDAGE DE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-828717 More informationQuantity required : 4 |
||||||
6 |
878649 - DEMI POULIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/9/2/img/66392.jpg)
7 |
OIL SEAL (41X48X4) OEM PIAGGIO COMMON A LA RANGE-431089 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/8/2/img/66382.jpg)
8 |
GASKET OF PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-430585 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/7/9/img/69079.jpg)
9 |
BUSH PULLEY ENTRAINEE OEM PIAGGIO 300 COMMON A LA RANGE-833674 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/7/8/img/69078.jpg)
10 |
SPRING PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 250-300-833673 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/6/5/img/66765.jpg)
11 |
GUIDE EXTERIEUR DE SPRING PULLEY ENTRAINEE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-487936 More informationQuantity required : 1 |
||||||
|
12 |
840312 - GR.EMBRAYAGE More informationQuantity required : 1 |
||||||
|
12 |
CM1612035-GR. CLUTCH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/3/4/img/66434.jpg)
13 |
NUT DE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-433232 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/0/9/img/69309.jpg)
14 |
TAMBOUR D'EMBRAYAGE OEM PIAGGIO 125-250-300 MP3, BEVERLY, 125-250 X8, X9-EVO, X-EVO, X7/GILERA 125-250-300 NEXUS, 125 RUNNER 4T/APRILIA 125-250-300 SPORT-CITY-ONE, ATLANTIC-8440494 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/1/3/img/73213.jpg)
15 |
PULLEY RECEPTRICE OEM PIAGGIO 200 X8, X9, BEVERLY, CARNABY, VESPA GT/GILERA 200 RUNNER/APRILIA 200 ATLANTIC, SPORT-CITY, SCARABEO-CM144133 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/9/img/66709.jpg)
16 |
NUT (M12X1. 25) DE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-486324 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/8/img/68708.jpg)
17 |
827877 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/2/img/66132.jpg)
18 |
WASHER (12X22X1) OEM PIAGGIO COMMON A LA RANGE-274246 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/1/2/img/66612.jpg)
19 |
VENTILATEUR PULLEY ENTRAINEE OEM PIAGGIO 125-250-300 COMMON A LA RANGE 2016 <-482305 More informationQuantity required : 1 |
