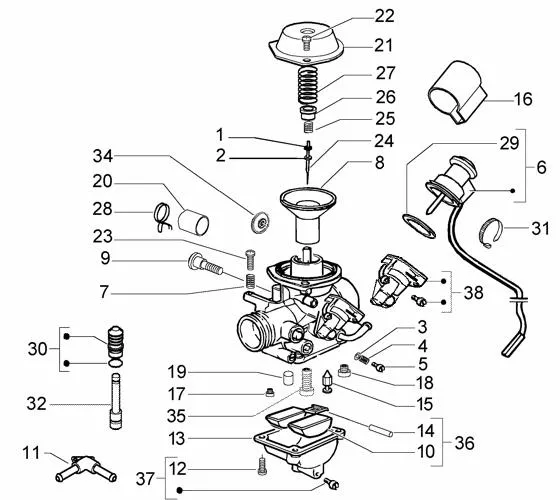

Vehicle Exploded View - VESPA VESPA GT 125 Granturismo 125 L 1998-2005

	P2R reference	68621
	Maker reference	826822

826822 - CIRCLIPS

	P2R reference	68620
	Maker reference	826821

826821 - RONDELLE

	P2R reference	68627
	Maker reference	826843

826843 - RONDELLE

	P2R reference	73168
	Maker reference	CM140208

CARBURETTOR NEEDLE OEM PIAGGIO 125 MP3, X-EVO, X9, X8, VESPA GTS-CM140208

	P2R reference	68626
	Maker reference	826839

826839 - RESSORT

	P2R reference	73095
	Maker reference	CM106402

CARB AIR SCREW "PIAGGIO GENUINE PARTS" COMMUN A LA GAMME 125 CC 1998>2004 -CM106402

	P2R reference	73152
	Maker reference	CM129802

CM129802 - DISPOSITIF WALBRO

	P2R reference	73209
	Maker reference	CM142913

STARTER OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC 2003-CM142913

	P2R reference	68623
	Maker reference	826825

826825-SPRING

	P2R reference	73150
	Maker reference	CM129701

BOISSEAU FOR CARBURETTOR WALBRO OEM PIAGGIO 125 X9, BEVERLY, X8, VESPA GRANTURIMO 1998 > 2005/GILERA 125 DNA, RUNNER 1998 > 2005/APRILIA 125-250 ATLANTIC, SCARABEO, 125 SPORT-CITY-CM129701

	P2R reference	73172
	Maker reference	CM140301

BOISSEAU OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T EN ALUMINIUM WITH MEPLAT FOR CARBURETTOR KEIHIN-CM140301

	P2R reference	68624
	Maker reference	826826

826826-SCREW

	P2R reference	73156
	Maker reference	CM129912

GICLEUR MAXI 105 OEM PIAGGIO 125 X8, X9, X-EVO, VESPA GTS/APRILIA 125 ATLANTIC, SCARABEO 2010 <-CM129912

	P2R reference	68618
	Maker reference	826812

FLOTTEUR OEM PIAGGIO COMMON A LA RANGE MAXISCOOTEUR 125-826812

	P2R reference	68773
	Maker reference	828742

828742 - RECHAFFEUR

	P2R reference	69237
	Maker reference	842516

842516-KIT RECHAUFFEUR

	P2R reference	68613
	Maker reference	826770

826770 - VIS

	P2R reference	69242
	Maker reference	842523

FLOAT BOWL GASKET FOR CARBURETTOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-842523

	P2R reference
	Maker reference	CM109809

CUVETTE

	P2R reference
	Maker reference	826811

Goupille

	P2R reference	68616
	Maker reference	826786

826786 - POINTEAU ESSENCE

	P2R reference	73248
	Maker reference	CM147102

POINTEAU OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T ET MAXI SCOOTER 125 CC-CM147102

	P2R reference	68628
	Maker reference	826866

826866 - COUVERCLE

	P2R reference	68789
	Maker reference	828844

CAPUCHON DE STARTER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-828844

	P2R reference	73082
	Maker reference	CM105302

CM105302 - GICLEUR

	P2R reference	73161
	Maker reference	CM140103

GICLEUR DE RALENTI (38) PIAGGIO 125 X-EVO, X8, VESPA GTS, X9, MP3-CM140103

	P2R reference	95921
	Maker reference	CM105412

CM105412 - GICLEUR

	P2R reference	73154
	Maker reference	CM129905

CM129905 - GICLEUR MAXI 98

	P2R reference
	Maker reference	826768

Cache

	P2R reference	69200
	Maker reference	841695

CAPUCHON/PRISE D'AIR OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-841695

	P2R reference	68674
	Maker reference	827467

GAS VALVE COVER "PIAGGIO GENUINE PART" 8769925 125 CC 1998>2005 -827467-

	P2R reference	70668
	Maker reference	877764

CARBURETTOR TOP CAP OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-877764

	P2R reference	68614
	Maker reference	826780

SCREW - FOR CARB COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -826780

	P2R reference	68622
	Maker reference	826824

826824-SCREW

	P2R reference	95923
	Maker reference	CM106507

NEEDLE FOR CARB "PIAGGIO GENUINE PART" 125 X8, 125 VESPA GT -CM106507

	P2R reference	96035
	Maker reference	CM140202

CM140202 - POINTEAU CON.

	P2R reference
	Maker reference	826818

Ressort

	P2R reference
	Maker reference	826820

Rondelle d'ar

	P2R reference	69238
	Maker reference	842518

AGRAFE OF FITTING KIT D'AIGUILLE FOR CARBURETTOR CVEK OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC-842518

	P2R reference
	Maker reference	CM107903

RESSORT

	P2R reference	73177
	Maker reference	CM140902

SPRING OF RETURN DE BOISSEAU DE THROTTLE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >-CM140902

	P2R reference	72897
	Maker reference	CM002916

CLAMP (15MM) SERRAGE HOSE OEM PIAGGIO COMMON A LA RANGE-CM002916

	P2R reference	68788
	Maker reference	828843

PLATE OF CARBURETTOR OEM 50-125-200 COMMON A LA RANGE 2016 <-2828843

	P2R reference
	Maker reference	840453

SET MANCHON CARBURATEUR

	P2R reference	65742
	Maker reference	145298

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

	P2R reference
	Maker reference	CM109712

TIGE

	P2R reference
	Maker reference	CM119202

MEMBRANE DISPOSIT.

	P2R reference	73238
	Maker reference	CM144602

CM144602-GIGLEUR MAX

	P2R reference	69241
	Maker reference	842522

CARBURETTOR FLOAT OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC-842522

	P2R reference	69242
	Maker reference	842523

FLOAT BOWL GASKET FOR CARBURETTOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-842523

	P2R reference	69239
	Maker reference	842519

842519-KIT BODY STARTER
