Vehicle Exploded View - VESPA VESPA GT 125 Granturismo 125 L 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

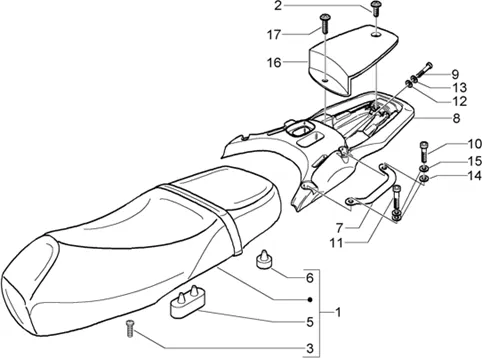

Châssis : T39 SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/724/Granturismo_125_L_1998-2005_T39.PNG)
1 |
SADDLE- BLACK "PIAGGIO GENUINE PART" 125 VESPA GT 1998>2005 -5771920083 More informationQuantity required : 1 |
|||||||||
|
1 |
SADDLE- "PIAGGIO GENUINE PART" VESPA 125 GRANTURISMO -5771920087- More informationQuantity required : 1 |
|||||||||
|
1 |
SADDLE- "PIAGGIO GENUINE PART" VESPA 125 GRANTURISMO BLACK -57719200D1- More informationQuantity required : 1 |
|||||||||
|
1 |
57719200D2 - SELLE X8 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
2 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/8/img/66288.jpg)
3 |
SCREW CRUCIFORME (6X14) OEM PIAGGIO COMMON A LA RANGE-296170 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/2/img/66292.jpg)
5 |
BUFFER SEAT OEM PIAGGIO COMMIN A LA RANGE-296456 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/5/7/img/67157.jpg)
6 |
BUFFER DE SEAT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-577492 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/1/6/2/img/81162.jpg)
7 |
LEFT PASSENGER HANDLE "PIAGGIO GENUINE PART" 125 VESPA GT 1998>2005 -57733700E9 More informationQuantity required : 1 |
|||||||||
|
7 |
LEFT PASSENGER HANDLE "PIAGGIO GENUINE PART" 125 VESPA GT 1998>2005 -57733800E9- More informationQuantity required : 1 |
|||||||||
|
8 |
REAR LUGGAGE RACK "PIAGGIO GENUINE PART" 125 VESPA GT 1998>2005 -5774570095- More informationQuantity required : 1 |
|||||||||
|
9 |
VIS |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/7/img/68497.jpg)
9 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-709674 More informationQuantity required : 2 |
|||||||||
|
10 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-709674 More informationQuantity required : 2 |
|||||||||
|
10 |
VIS |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/3/2/9/img/78329.jpg)
11 |
SCREW BTR (6X30) OEM PIAGGIO COMMON A LA RANGE-319538 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
12 |
WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
13 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/2/img/65362.jpg)
14 |
WASHER PLATE (6. 4X13X1. 5) OEM PIAGGIO COMMON A LA RANGE-013777 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
15 |
WASHER SPRING (6, 4X11X0, 5) OEM PIAGGIO COMMON A LA RANGE-006966 More informationQuantity required : 4 |
|||||||||
|
16 |
LUGGAGE RACK COVER "PIAGGIO GENUINE PART" 125 VESPA GT 2005>2007 -577467000C- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
17 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 1 |
|||||||||
