Vehicle Exploded View - DERBI GPR 50 GPR REPLICA & R 50cc 2006 E2 3ver
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

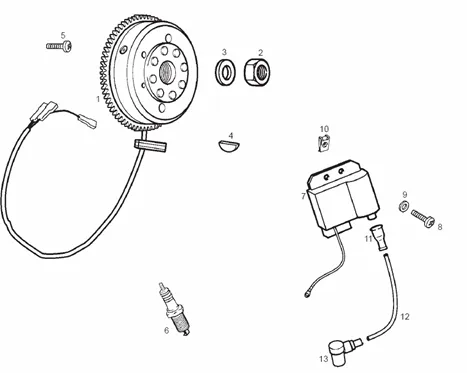

Tables : 24 VOLANT MAGNÉTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1120/GPR_REPLICA_&_R_50cc_2006_E2_3ver_24.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/6/1/img/68761.jpg)
1 |
IGNITION (WITH STARTER MOTOR) OEM DERBI 50 SENDA DRD PRO 2005 > 2011/GILERA SMT 2006 >, RCR 2006 >/APRILIA RS 2006 > 2016-82852R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/3/img/69503.jpg)
2 |
NUT IGNITION OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA SX, RX, RS 2006 >, RS4 2011 >-847235 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/2/7/img/151727.jpg)
3 |
WASHER ROTOR IGNITION OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2006 >/APRILIA 50 SX, RX, RS-1A011675 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/8/img/69488.jpg)
4 |
CLAVETTE DE VOLANT IGNITION ET CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS, RX, SX 2006 >, RS4 2011 >-847215 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/1/img/69501.jpg)
5 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -847233- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/0/0/img/71100.jpg)
6 |
SPARK PLUG BR10EG OEM PIAGGIO GILERA 50-125 RS, RX, SX-AP0297830 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/5/7/img/69457.jpg)
6 |
SPARK PLUG B8ES OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2006 > 2010/MOTO-GUZZI V65, NEVADA, STRADA-847085 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/8/7/img/64787.jpg)
7 |
BOBINE IGNITION OEM DERBI 50 SENDA 2002 > 2017/GILERA 50 SMT 2006 > 2017/APRILIA 50 RS, RX, SX 2006 > 2017-00H03330171 More informationQuantity required : 1 |
||||||
8 |
00012162000-BOLT HEAD HEX. 5M80X15 More informationQuantity required : 1 |
||||||
|
9 |
BOULON S03105900 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
10 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
11 |
00F03300731-CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
12 |
CABLE HAUTE TENSION OEM PIAGGIO COMMON A TOUTE LA RANGE-080341 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/8/3/img/64083.jpg)
13 |
00G03301271-MANIFOLD DE SPARK PLUG More informationQuantity required : 1 |
