Vehicle Exploded View - DERBI GPR 50 GPR REPLICA & R 50cc 2006 E2 3ver
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

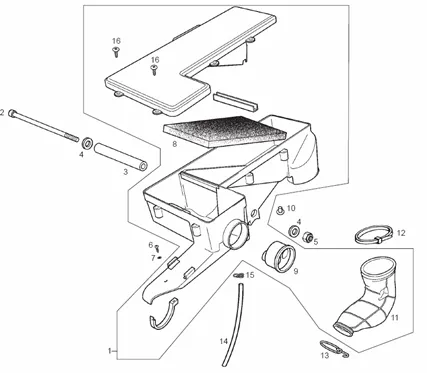

Tables : 15 BOÎTE FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1120/GPR_REPLICA_&_R_50cc_2006_E2_3ver_15.png)
1 |
00H01810541 - CORPS FILTRE More informationQuantity required : 1 |
||||||
|
2 |
00H06301171 - VIS More informationQuantity required : 1 |
||||||
|
3 |
00H00500251-SPACER DE BEARING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/4/6/img/63946.jpg)
4 |
WASHER PLATE (8. 6X20X2. 5) OEM PIAGGIO COMMON A LA RANGE-00G00803101 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/5/img/63715.jpg)
5 |
NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-00023108000 More informationQuantity required : 1 |
||||||
|
6 |
00011941300-SCREW More informationQuantity required : 1 |
||||||
|
7 |
00031105000-WASHER PLATE M5 DIN125 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/6/9/img/64769.jpg)
8 |
MOUSSE DE FILTER A'AIR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00H03208251 More informationQuantity required : 1 |
||||||
|
9 |
00H01800621-DIAPFRAGME AIR More informationQuantity required : 1 |
||||||
|
10 |
861302-CAP More informationQuantity required : 1 |
||||||
|
11 |
AIR FILTER INTAKE HOSE "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010 -00H03209261- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/9/img/63899.jpg)
12 |
HOSE CLAMP NYLON TYPE RILSAN (290X4. 8) OEM PIAGGIO COMMON A LA RANGE-00F00900531 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/8/0/img/64080.jpg)
13 |
CLAMP HOSE DE AIR FILTER OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 SX, RX 2006 >-00G03204272 More informationQuantity required : 1 |
||||||
|
14 |
00H03702461 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/0/9/img/64809.jpg)
15 |
CLAMP HOSE (8X10) BOCAL OF BRAKE OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2010 </APRILIA SX, RX, RS-00H03700131 More informationQuantity required : 1 |
||||||
|
16 |
00011031801-SCREW TARAUD 3, 6X18 BLACK CL89H More informationQuantity required : 1 |
