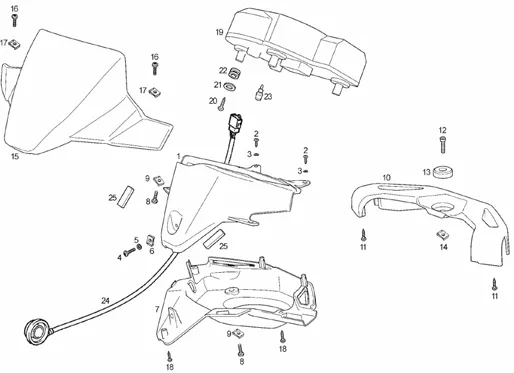

Vues éclatées : 8 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1147/GP1_125_2ver_E3_2007_(EMEA)_8.png)
1 |
00G01016521 - CACHE DIRECTION More informationQuantity required : 1 |
||||||
|
2 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
3 |
WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226 More informationQuantity required : 1 |
||||||
|
4 |
00012162000-BOLT HEAD HEX. 5M80X15 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/6/img/63726.jpg)
5 |
WASHER PLATE (6X12X1. 7) OEM PIAGGIO COMMON A LA RANGE-00031106000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
7 |
862564-CARCASA INF. GP1 OPEN - 06 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/3/img/63693.jpg)
8 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-00012051200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
9 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 1 |
||||||
|
10 |
00G015016515 - COUVERCLE More informationQuantity required : 1 |
||||||
|
11 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
12 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044 More informationQuantity required : 1 |
||||||
|
13 |
00G05900711 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
14 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
15 |
00G01506751 - COUVERCLE More informationQuantity required : 1 |
||||||
|
16 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-00012051200 More informationQuantity required : 1 |
||||||
|
17 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 1 |
||||||
|
18 |
|
||||||
|
19 |
00G01638521 - CTO.TABL.PORTAIN.GP1 RACE125CC More informationQuantity required : 1 |
||||||
|
19 |
861611 - CTO.TABL.PONTAIN.UK.GP1 250CC (F) More informationQuantity required : 1 |
||||||
|
20 |
00011941300-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
21 |
WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181 More informationQuantity required : 1 |
||||||
|
22 |
00H01602941-RUBBER GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
23 |
00G01602581-R-DOOR-LAMPES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/2/img/67052.jpg)
24 |
CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER (CODEUR) SCOOT OEM PIAGGIO 50 NRG 2006 >, 125-250-500 X9/GILERA 50-125 RUNNER, DNA-56435R More informationQuantity required : 1 |
||||||
|
25 |
864568 - TOPE ANTIVIBRAC.CARCASA MANILLAR GP1 LS More informationQuantity required : 1 |
