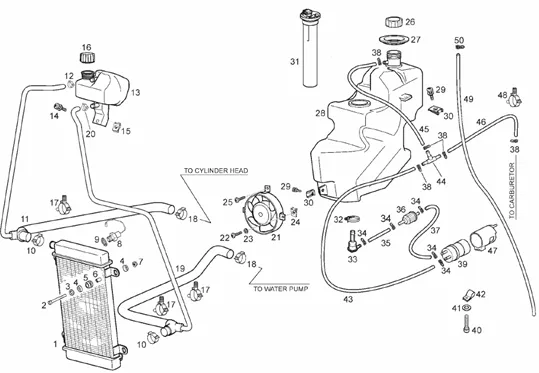

Vehicle Exploded View - DERBI GP1 125 2ver E3 2007 (EMEA)

	P2R reference	194874
	Maker reference	00G03805011

00G03805011-CTO. RADIADOR GP1 250CC 05 E2

	P2R reference	71828
	Maker reference	AP8150165

SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8150165

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	63883
	Maker reference	00D01500552

WASHER SPECIALE OEM PIAGGIO COMMON A LA RANGE-00D01500552

	P2R reference	63673
	Maker reference	000089150205

RUBBER MOUNT DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 > 2011, SX, RX 2006 >-00008915020

	P2R reference	63882
	Maker reference	00D01500471

SPACER DE GUIDE-FIL OEM PIAGGIO GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX-00D01500471

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	67310
	Maker reference	584715

SONDE DE TEMPERATURE WATER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-584715

	P2R reference	154595
	Maker reference	864808

864808-GASKET

	P2R reference	65768
	Maker reference	168077

GASKET CUIVRE SONDE DE TEMPERATURE COOLING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-168077

	P2R reference	194875
	Maker reference	00D03400521

00D03400521-CLAMP HOSE

	P2R reference	194876
	Maker reference	00G03804021

00G03804021 - TUBO CULATA-RADIAD.GP1 250CC

	P2R reference	64108
	Maker reference	00G03801701

CLAMP HOSE OEM PIAGGIO COMMON A LA RANGE

	P2R reference	194877
	Maker reference	00G03803501

00G03803501 - DEPOSITO EXPANSOR GP1 250CC

	P2R reference	65008
	Maker reference	00H05900021

SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	67743
	Maker reference	623673

CAP VASE EXPANSION OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-623673

	P2R reference	194878
	Maker reference	00G03802091

00G03802091-ABRAZ. MANGU. AGUA D25, 4 GP1 250

	P2R reference	194875
	Maker reference	00D03400521

00D03400521-CLAMP HOSE

	P2R reference	194879
	Maker reference	00G03802041

00G03802041 - TUBO RADIAD.-MOTOR GP1 250CC

	P2R reference	194880
	Maker reference	00H03806091

00H03806091 - ABRAZ.NORMA COBRA 16/8 W4

	P2R reference	194881
	Maker reference	00G05700551

00G05700551 - CTO.ELECTROVENTIL.GP1 250CC

	P2R reference	63702
	Maker reference	000121515005

00012151500-SCREW A HEAD RONDE A FENTES C

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	63687
	Maker reference	000111413005

SCREW PARKER (4, 8X13) CRUCIFORME OEM COMMON A LA RANGE-00011141300

	P2R reference	194882
	Maker reference	00G00402131

00G00402131-CAP RESERV. FUEL V. B

	P2R reference	187313
	Maker reference	00G06200051

00G06200051-GASKET

	P2R reference	194883
	Maker reference	00G00416011

00G00416011 - R-DEPOSITO GASOLINA GP1 250CC

	P2R reference	64151
	Maker reference	00G06800021

SCREW CRUCIFORME (6X20) OEM PIAGGIO COMMON A LA RANGE-00G06800021

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	73019
	Maker reference	CM086807

JAUGE A FUEL OEM PIAGGIO 125-250 X9 1998 > 2005, 125X8 1998 > 2005-CM086807

	P2R reference	63932
	Maker reference	00G00400501

CLAMP ROBINET FUEL OEM DERBI 50 SENDA 2000 >-00G00400501

	P2R reference	153428
	Maker reference	00H03701411

00H03701411 - FILTRE A HUILE

	P2R reference	63891
	Maker reference	00D03700131

00D03700131 - CRAMPON ELASTIQUE TUBE ESSE

	P2R reference	70868
	Maker reference	896544

HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544

	P2R reference	194884
	Maker reference	00G00400611

00G00400611 - FILTRE A ESSENCE

	P2R reference	70868
	Maker reference	896544

HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544

	P2R reference	64817
	Maker reference	00H03701131

00H03701131 - COLLIER

	P2R reference	67860
	Maker reference	639861

FUEL PUMP "PIAGGIO GENUINE PART" 125 MP3, X8, X9, X-EVO, GTS, LX, NEXUS -639861

	P2R reference	63752
	Maker reference	000920612145

00092061214-SCREW A HEAD RONDE A FENTES C

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	188065
	Maker reference	00H02101991

00H02101991 - ENTRETOISE

	P2R reference	194885
	Maker reference	CM200111

CM200111 - TUBO GASOLINA L590

	P2R reference	194886
	Maker reference	862536

862536 - R-RACOR DITRIB.TUBOS DPSTO.GAS.GP1250

	P2R reference	194887
	Maker reference	CM200106

CM200106 - TUBO GASOLINA D10X6X310

	P2R reference	194888
	Maker reference	CM200110

CM200110-TUBO GASOLINA L470

	P2R reference	68236
	Maker reference	654047

BRACKET OF PUMP ELECTRIC OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC-654047

	P2R reference	194878
	Maker reference	00G03802091

00G03802091-ABRAZ. MANGU. AGUA D25, 4 GP1 250

	P2R reference	194889
	Maker reference	00G03702461

00G03702461 - TUBO DRENAJE BOCA DPSTO.GP1 04

	P2R reference	63891
	Maker reference	00D03700131

00D03700131 - CRAMPON ELASTIQUE TUBE ESSE
