Vehicle Exploded View - GILERA GP 800 Centenario 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

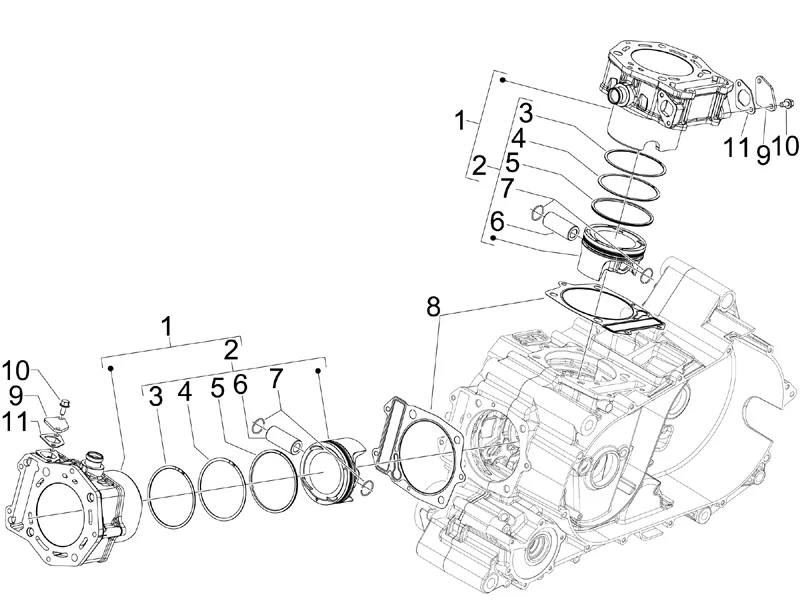

Moteur : 01.07 GROUPE CYLINDRE-PISTON-AXE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/176/GP_800_Centenario_2009-039.png)
1 |
874989 - CYLINDRE More informationQuantity required : 1 |
||||||
|
2 |
874989 - CYLINDRE More informationQuantity required : 2 |
||||||
|
2 |
8749880002 - GR.PISTON More informationQuantity required : 2 |
||||||
|
2 |
8749880003 - GR.PISTON More informationQuantity required : 2 |
||||||
|
2 |
8749880004 - GR.PISTON More informationQuantity required : 2 |
||||||
|
3 |
844941 - SEGMENT More informationQuantity required : 1 |
||||||
|
4 |
844942 - SEGMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/3/6/img/69336.jpg)
5 |
PISTON RING RACLEUR D'HUILE OEM PIAGGIO GILERA 800 GP/APRILIA 850 SRV, MANA-844943 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/9/8/img/68698.jpg)
6 |
SHAFT OF PISTON (D22) OEM PIAGGIO 500-530 MP3-827820 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/2/9/img/68729.jpg)
7 |
CIRCLIPS DE PISTON OEM PIAGGIO 500 MP3 2007 >-828116 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/3/img/68903.jpg)
8 |
CYLINDER BASE GASKET DE CYLINDER (0, 8MM) NE PAS UTILSER WITH CASING CM3236014A/B OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-830275 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/4/img/68904.jpg)
8 |
CYLINDER BASE GASKET DE CYLINDER (0, 6MM) NE PAS UTILSER WITH CASING CM3236014A/B OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 400-500-830276 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/5/img/68905.jpg)
8 |
CYLINDER BASE GASKET DE CYLINDER (0, 4MM) NE PAS UTILSER WITH CASING CM3236014A/B OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 400-500-830277 More informationQuantity required : 1 |
||||||
|
9 |
840135-PLATE CIL. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
10 |
SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/6/img/69546.jpg)
11 |
GASKET OF TENDEUR CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-847928 More informationQuantity required : 2 |
