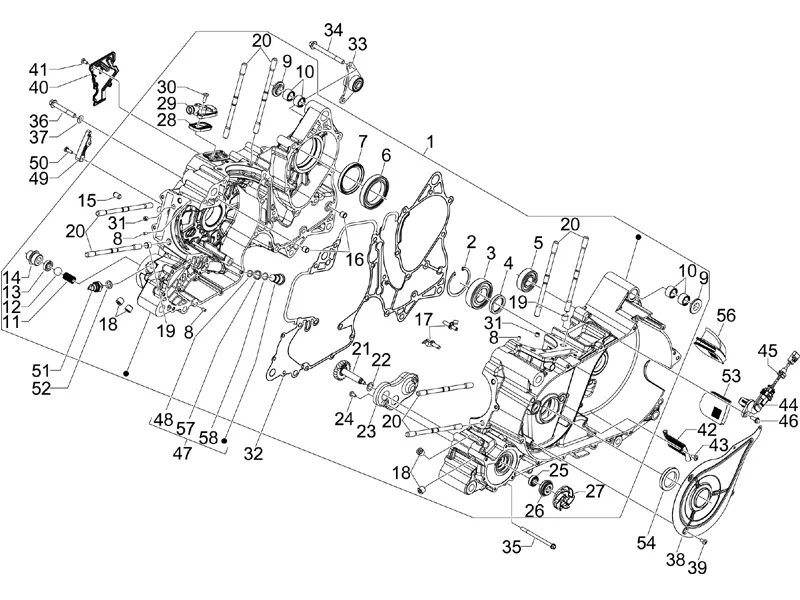

Vehicle Exploded View - GILERA GP 800 Centenario 2009

	P2R reference	72762
	Maker reference	B0173160001

B0173160001-CASING 1

	P2R reference	72763
	Maker reference	B0173160002

B0173160002-CASING 2

	P2R reference	63827
	Maker reference	006662

CLIPS/CIRCLIPS (66X2) OEM PIAGGIO COMMON A LA RANGE-006662

	P2R reference	68836
	Maker reference	82926R

82926R - ROULEMENT

	P2R reference	68511
	Maker reference	825023

OIL SEAL SHAFT DE TRANSMISSION OEM PIAGGIO GILERA GP 800 2007 >-825023

	P2R reference	69082
	Maker reference	833701

BEARING (20X47X14) DE REDUCTEUR (EX833701) OEM PIAGGIO COMMON A LA RANGE-1A024412R

	P2R reference	68834
	Maker reference	82925R

TRANSMISSION BEARING "PIAGGIO GENUINE PART" GILERA GP 800/APRILIA 850 SRV -82925R-

	P2R reference	69351
	Maker reference	845443

845443-GASKET 50X68

	P2R reference	66669
	Maker reference	484993

BUSH DE CENTRAGE (5X8) OEM PIAGGIO COMMON A LA RANGE-484993

	P2R reference	67746
	Maker reference	623857

623857-GASKET

	P2R reference	69363
	Maker reference	845684

845684-CAGE POULI

	P2R reference	69035
	Maker reference	832983

832983-SPRING

	P2R reference	69033
	Maker reference	832980

832980-SFERA

	P2R reference	69036
	Maker reference	832984

832984-SPRING

	P2R reference	69037
	Maker reference	832985

832985-FITTING OIL FILTER

	P2R reference	72696
	Maker reference	B015956

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

	P2R reference	72697
	Maker reference	B015957

PION DE CENTRAGE (11X10) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-B015957

	P2R reference	68930
	Maker reference	830666

830666-GICLEUR

	P2R reference	72673
	Maker reference	B015433

CAP (M12X1. 5X11) OEM PIAGGIO COMMON A LA RANGE-B015433

	P2R reference	68552
	Maker reference	825597

STUD CALIBRE 11. 8X10 OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI ET LES MAXI SCOOTER 400-500 CC-825597

	P2R reference	109026
	Maker reference	1A003631R

STUD (10X1. 25X166) OEM PIAGGIO COMMON A LA RANGE-1A003631R

	P2R reference	70412
	Maker reference	872025

872025-SPINDLE PUMP-WATER

	P2R reference	71008
	Maker reference	974290

WASHER PLATE (12. 2X19X1) OEM PIAGGIO COMMON A LA RANGE-974290

	P2R reference	69105
	Maker reference	834178

834178-SHEET METAL

	P2R reference	109024
	Maker reference	1A003111

SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111

	P2R reference	174611
	Maker reference	1A018564

GASKET OF PUMP COTE CASING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-1A018564

	P2R reference	174611
	Maker reference	873934

GASKET OF PUMP COTE CASING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-1A018564

	P2R reference	68876
	Maker reference	82991R

GASKET WATER PUMP OEM PIAGGIO 125-250-300-400-500 MP3, 125-250 X7, X8, X-EVO, BEVERLY, X10/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX-82991R

	P2R reference
	Maker reference	1A002351

ROUE DE POMPE

	P2R reference	68695
	Maker reference	82778R

CLAPET/VALVE OIL CASING ENGINE OEM PIAGGIO COMMON A LA RANGE-82778R

	P2R reference	68657
	Maker reference	827209

827209-COVER

	P2R reference	72761
	Maker reference	B017296

B017296-SCREW

	P2R reference	68558
	Maker reference	825649

825649-GICLEUR CASING

	P2R reference	68695
	Maker reference	82778R

CLAPET/VALVE OIL CASING ENGINE OEM PIAGGIO COMMON A LA RANGE-82778R

	P2R reference	70433
	Maker reference	872625

872625-GASKET

	P2R reference	70585
	Maker reference	875518

875518-BRACKET

	P2R reference	70550
	Maker reference	874746

874746-SCREW

	P2R reference	70551
	Maker reference	874747

874747-SCREW

	P2R reference	70552
	Maker reference	874748

874748-SCREW

	P2R reference	66689
	Maker reference	485703

GASKET OF VIDANGE CASING DE TRANSMISSION (8, 2X12X1) OEM PIAGGIO COMMON A TOUTE LA RANGE-485703-X000D

	P2R reference	69034
	Maker reference	832981

832981 - DEFLECTEUR

	P2R reference	109024
	Maker reference	1A003111

SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111

	P2R reference	69277
	Maker reference	843317

843317-PLATE

	P2R reference	109024
	Maker reference	1A003111

SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111

	P2R reference	69114
	Maker reference	834345

834345-GRILLE

	P2R reference	109024
	Maker reference	1A003111

SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111

	P2R reference	66369
	Maker reference	430044

GASKET THORIQUE DU SENSOR OF SPEED OEM PIAGGIO 125-300 BEVERLY, X10-430044

	P2R reference	69028
	Maker reference	832963

SENSOR SPEED OEM PIAGGIO 125-300 X10 2012 >, BEVERLY, 125-250 X-EVO 2007 >/APRILIA 850 SRV 2012 >, 750 DORSODURO 2008 >, SHIVER 2007 >/GILERA 800 GP 2007 >-8329635

	P2R reference	67318
	Maker reference	584838

584838 - FAISCEAU CABLES

	P2R reference	72723
	Maker reference	B016777

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

	P2R reference	72694
	Maker reference	B015860

CAP DE VIDANGE OIL OEM PIAGGIO GILERA 800 GP 2008 >/APRILIA 850 SRV 2012 >-B015860

	P2R reference	69262
	Maker reference	843186

O-RING (10. 5X13. 8X1. 5) OEM PIAGGIO COMMON A LA RANGE-843186

	P2R reference	68963
	Maker reference	831335

831335-PATIN

	P2R reference	72761
	Maker reference	B017296

B017296-SCREW

	P2R reference	67933
	Maker reference	641541

SENSOR PRESSION D'HUILE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER ET MOTO (PREVOIR ADAPTATEUR 99327 FOR 1200 GRISO, NORGE, STELVIO, SPORT)-1A024308R

	P2R reference	66703
	Maker reference	486075

GASKET OF MANO OU DE VIDANGE OEM PIAGGIO COMMON A LA RANGE-486075

	P2R reference	70527
	Maker reference	874451

874451-DEFLECTOR

	P2R reference	69038
	Maker reference	832987

832987-CIRCLIPS

	P2R reference	68695
	Maker reference	82778R

CLAPET/VALVE OIL CASING ENGINE OEM PIAGGIO COMMON A LA RANGE-82778R

	P2R reference	68965
	Maker reference	831393

GASKET VIDANGE OEM PIAGGIO 660 RS, TUONO APRILIA 2020 >/GP 800 GILERA 2007 > 2011/MOTO GUZZI V100 2022 >-831393

	P2R reference	70584
	Maker reference	875442

875442-DEFLECTOR
