Vehicle Exploded View - PIAGGIO FLY 50 4T 2V 25-30Kmh 2012-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

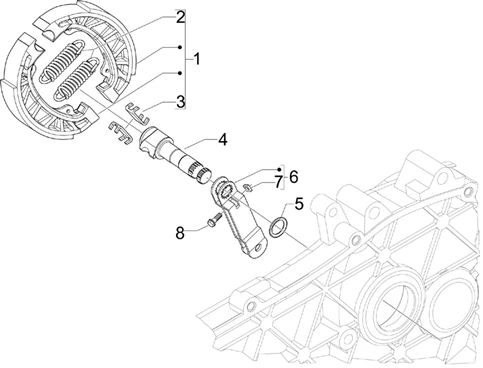

Moteur : 01.35 FREIN POSTERIEUR - MÂCHOIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/68/Fly_50_4T_2V_25-30Kmh_2012-2015_01.35.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/9/0/6/1/img/209061.jpg)
1 |
56293R6 - BRAKE SHOES KIT More informationQuantity required : 1 |
||||||
|
1 |
56293R6 - BRAKE SHOES KIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/1/7/img/68017.jpg)
2 |
BRAKE SHOE SPRING "PIAGGIO GENUINE PART" COMMON FOR RANGE SCOOTER 50-125 -647384 More informationQuantity required : 2 |
||||||
3 |
266724 - PLAQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/4/6/img/72646.jpg)
4 |
REAR BRAKE CAM "PIAGGIO GENUINE PART" 50 ZIP, TYPHOON, NRG, LIBERTY, FLY, VESPA LX, VESPA-S/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD -B014502 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/4/img/66124.jpg)
5 |
273419 - BAGUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/2/1/2/img/92212.jpg)
6 |
LEFT BRAKE LEVER - "PIAGGIO GENUINE PART" 50-125 LIBERTY 2015>, FLY 2015> -781120 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/9/1/img/68791.jpg)
7 |
828862 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/7/6/8/img/110768.jpg)
8 |
B011784 - VIS More informationQuantity required : 1 |
