Vehicle Exploded View - PIAGGIO FLY 50 4T 2V 25-30Kmh 2012-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

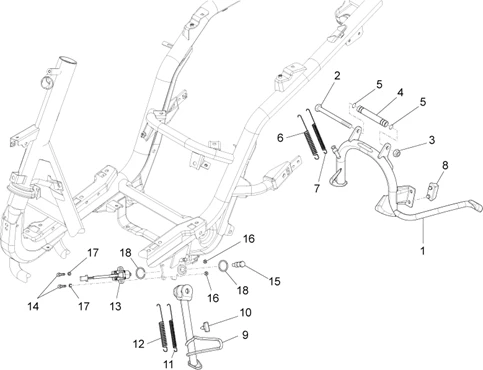

Châssis - parties plastiques - carrosseries : 02.25 BÉQUILLE/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/68/Fly_50_4T_2V_25-30Kmh_2012-2015_02.25.PNG)
1 |
6667014 - BEQUILLE CENTRALE More informationQuantity required : 1 |
||||||
|
1 |
6684124 - BEQUILLE CENTRALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/3/4/2/img/90342.jpg)
2 |
668187 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
3 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/1/img/67251.jpg)
4 |
SPACER- FOR STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -582298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/7/img/66127.jpg)
5 |
STAND AXLE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -273754 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/9/img/67209.jpg)
6 |
SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -581249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/8/img/67208.jpg)
7 |
SPRING - FOR STAND "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -581248 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/2/4/img/67224.jpg)
8 |
CENTRAL STAND RUBBER PAD "PIAGGIO GENUINE PART" FOR MAXISCOOTERS RANGE -581560 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/3/7/4/img/90374.jpg)
9 |
SIDE STAND "PIAGGIO GENUINE PART" 50 FLY 4STROKE 2012> -668374- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/8/img/67268.jpg)
10 |
CENTRAL STAND RUBBER PAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER + MAXISCOOTER -582885 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/6/img/66286.jpg)
11 |
SPRING - FOR STAND "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -295788 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/7/img/66287.jpg)
12 |
SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -295789 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/4/0/2/img/86402.jpg)
13 |
642559 - BOUTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/2/9/5/img/90295.jpg)
14 |
667890 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/1/5/9/img/90159.jpg)
15 |
667162 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
16 |
020105 - ECROU S02010500 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
17 |
016405 - RONDELLE S01640500 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/1/2/img/65812.jpg)
18 |
SPACER- M23-M27 FOR SIDE STAND "PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV -191189 More informationQuantity required : 2 |
