Vehicle Exploded View - PIAGGIO FLY 150 4T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

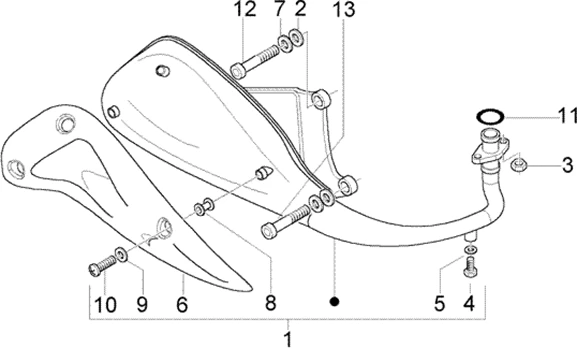

Moteur : T24 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/360/Fly_150_4T_1998-2005_T24.PNG)
1 |
8438376 - SILENCIEUX More informationQuantity required : 1 |
||||||
|
2 |
825643 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
3 |
NUT - TO HEAD/EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -436947 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/3/3/img/66433.jpg)
4 |
EXHAUST SCREW/FLANGE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -433122 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/2/img/65412.jpg)
5 |
EXHAUST WASHER Ø10,2XØ15X2 FOR ALL THE RANGE -016195 More informationQuantity required : 1 |
||||||
|
6 |
843841 - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/4/img/65364.jpg)
7 |
MULTIPURPOSE WASHER (8,2X20X2,2)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -013861 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/7/9/img/66779.jpg)
8 |
SPACER- FOR SILENCER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC ET MAXISCOOT 125-250-300 -488045 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/6/img/68676.jpg)
9 |
EXHAUST FLAT WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -827526 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/4/0/img/66440.jpg)
10 |
433800 - BOULON More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/5/8/img/66458.jpg)
11 |
EXHAUST GASKET- "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC REFROIDISSEMENT PAR AIR -434716 More informationQuantity required : 1 |
||||||
|
12 |
844191 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/0/img/69320.jpg)
13 |
SCREW - FOR EXHAUST "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, VESPA LX, VESPA-S, 125 FLY, X8 STREET -844470 More informationQuantity required : 1 |
