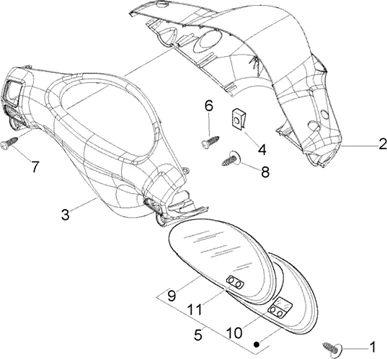

Guidon : T37 COMPTEUR KILOMETRIQUE-COUVERCLES DU GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/360/Fly_150_4T_1998-2005_T37.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/7/0/img/66970.jpg)
0 |
BATTERY FOR CLOCK "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S, FLY, LIBERTY, 125-250-300 VESPA GTS, 125-250 X7, 50 TYPHOON 1998>2004/GILERA 50 STALKER -498342 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
1 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/9/2/img/68192.jpg)
2 |
FRONT HANDLEBAR COVER "PIAGGIO GENUINE PART" 50-125 FLY 2006>2011 BLACK 94 -6527410090 More informationQuantity required : 1 |
||||||
2 |
65274100DB - CACHE DIRECTION More informationQuantity required : 1 |
||||||
|
2 |
HANDLEBAR COVER "PIAGGIO GENUINE PART" PIAGGIO 50-125 FLY 2006>2011 GREY 738/A -65274100F2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/9/5/img/68195.jpg)
2 |
HANDLEBAR COVER "PIAGGIO GENUINE PART" PIAGGIO 50-125 FLY 2006>2011 RED 894 -65274100R7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/9/7/img/68197.jpg)
3 |
STEERING COVER- INNER PART "PIAGGIO GENUINE PART" 50-125 FLY 2006> -652742000C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/5/img/72925.jpg)
4 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017409 More informationQuantity required : 1 |
||||||
|
5 |
SPEEDOMETER "PIAGGIO GENUINE PART" PIAGGIO 125 FLY 2006>2011 -641159 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/6/img/63856.jpg)
6 |
SCREW - FOR FAIRINGS FASTENING OR FLASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -008457 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/5/5/img/65955.jpg)
7 |
227983 - VIS More informationQuantity required : 2 |
||||||
|
8 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/8/4/img/66784.jpg)
9 |
DASHBOARD GLASS "PIAGGIO GENUINE PART" 50-125 FLY 2006>2011 -494518 More informationQuantity required : 1 |
||||||
|
10 |
494521 - HORLOGE More informationQuantity required : 1 |
||||||
|
11 |
494519 - POUSSOIR More informationQuantity required : 1 |
