Vehicle Exploded View - APRILIA ETX 125 1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

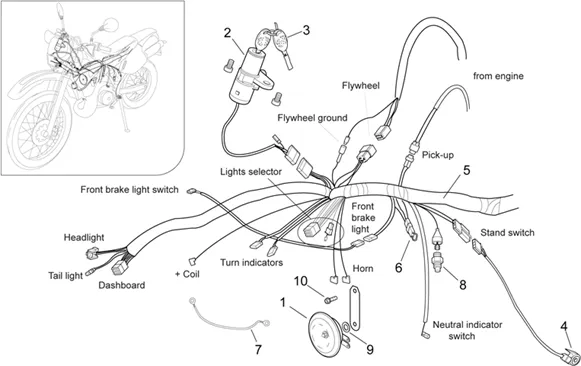

Chassis : 28.23 CIRCUIT ELECTRIQUE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/693/ETX_125_1998_28.23.PNG)
1 |
AP8124524 - KLAXON; More informationQuantity required : 1 |
||||||
|
2 |
AP8124495 - BLOC DEMARREUR-BLOC; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.jpg)
3 |
EBAUCHE DE CLE FRAISEE WITHOUT TRANSPONDEUR OEM APRILIA COMMON A LA RANGE-AP8104613 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/8/7/img/69687.jpg)
4 |
CONTACTEUR DE STAND OEM PIAGGIO APRILIA ATLANTIC 125-250-300-400-500, SCARABEO 500, 1000 RSV-2, FUTURA, CAPONORD, TUONO V2, FALCO, 50-125 RS/MOTO GUZZI 750 BREVA, NEVADA-00N05700601 More informationQuantity required : 1 |
||||||
|
5 |
Câblage principal; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/9/img/72189.jpg)
6 |
DIODE DE SECURITE OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA/APRILIA 50-125 RS, TUONO, RX, SX, 1000 RSV-2, FALCO, 650 PEGASO, 400-500 ATLANTIC-AP8212588 More informationQuantity required : 1 |
||||||
|
7 |
AP8212146 - CABLAGE MASSE-BATTERIE More informationQuantity required : 1 |
||||||
|
8 |
AP8124494-THERMOINTERRUPTEUR More informationQuantity required : 1 |
||||||
|
9 |
AP8150182-WASHER ELASTIC COURBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
10 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 1 |
All the exploded views of this vehicle
-
