Vehicle Exploded View - APRILIA ETX 125 1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

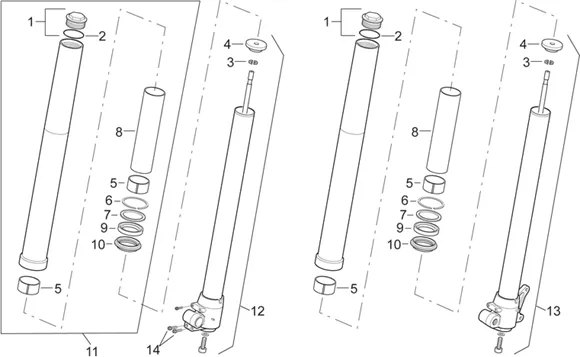

Chassis : 28.03 FOURCHE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/693/ETX_125_1998_28.03.PNG)
1 |
AP8123348-OEM MOPED CAP OF FORK APRILIA 50-125 RS, 650 PEGASO, 125 SC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/1/3/img/71513.jpg)
2 |
O RING OF FORK OEM APRILIA 125 RS, RX 2010 <-AP8123346 More informationQuantity required : 2 |
||||||
|
3 |
AP8123441 - DEMI-CLAVETTES; More informationQuantity required : 4 |
||||||
|
4 |
AP8123357-BUSH More informationQuantity required : 2 |
||||||
|
5 |
AP8123689 - DOUILLE DE COULISSEMENT; More informationQuantity required : 2 |
||||||
|
6 |
AP8123199 - BAGUE DE BUTEE More informationQuantity required : 2 |
||||||
|
7 |
Rondelle bouche guide; |
||||||
|
8 |
AP8123355 - ENTRETOISE; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/8/5/img/67385.jpg)
9 |
OIL SEAL (40X52. 2X10/10. 5) DE FORK MARZOCCHI OEM PIAGGIO 500 X9/APRILIA 50-125-250 RS, 500 ATLANTIC, 650 PEGASO/GILERA 500 NEXUS/MOTO-GUZZI 750 BREVA, NEVADA, V7-599501 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/8/6/img/67386.jpg)
10 |
PROTECTOR POUSSIERE FORK OEM PIAGGIO APRILIA 50-125-250 RS/DERBI SENDA (MARZOCCHI) 2003 > 2011/MOTO-GUZZI V7, BREVA NEVADA-599502 More informationQuantity required : 2 |
||||||
|
11 |
Fourreau .; |
||||||
|
12 |
Tige+porte-roue D; |
||||||
|
13 |
AP8123848 - TIGE+PORTE-ROUE G; More informationQuantity required : 1 |
||||||
|
14 |
AP8123540 - VIS BRIDE More informationQuantity required : 2 |
