Vehicle Exploded View - APRILIA DORSODURO 750 Factory-ABS 2010-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

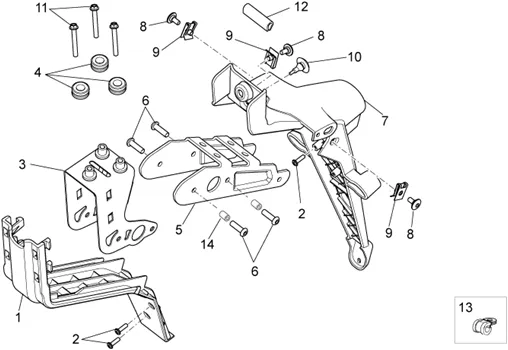

Chassis : 28.17 CARROSSERIE POSTERIEURE III
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/291/Dorsoduro_750_Factory-ABS_2010-2013_28.17.PNG)
1 |
849955-LATCH TABL. EDGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
2 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 3 |
||||||
|
3 |
856680-FRAME DOOR-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
4 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 3 |
||||||
|
5 |
859697-BRACKET PLATE IM. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/0/img/72330.jpg)
6 |
SCREW BTR HEAD BOMBEE (6X20) INOX OEM PIAGGIO COMMON A LA RANGE-AP8224470 More informationQuantity required : 4 |
||||||
|
7 |
856827-DOOR-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
8 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
9 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
10 |
CAP RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8120001 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/6/img/71946.jpg)
11 |
SCREW FLANGE TH (6X45) OEM PIAGGIO COMMON A LA RANGE-AP8152284 More informationQuantity required : 3 |
||||||
|
12 |
AP8144707-GUARNIZIONE TELAIO More informationQuantity required : 1 |
||||||
|
13 |
AP8134167-PLATE HOSE BRAKE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
14 |
HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544 More informationQuantity required : 2 |
