Vehicle Exploded View - APRILIA DORSODURO 750 Factory-ABS 2010-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

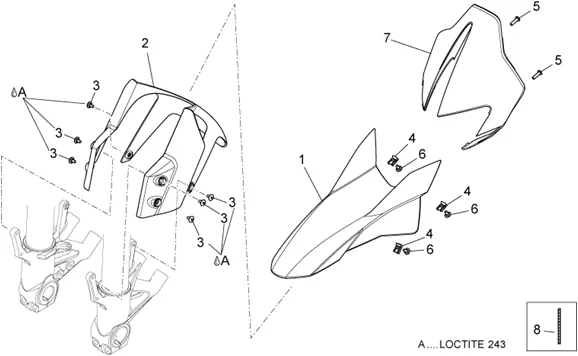

Chassis : 28.10 CARROSSERIE AV. - GARDE-BOUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/291/Dorsoduro_750_Factory-ABS_2010-2013_28.10.PNG)
1 |
FRONT MUDGUARD- CARBON EFFECT "PIAGGIO GENUINE PART" APRILIA 750 DORSODURO FACTORY -894853- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/2/3/4/img/40234.jpg)
2 |
SOCLE DE GUARD-MUD FRONT OEM PIAGGIO APRILIA 750-900-1200 DORSODURO-856850 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
3 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
4 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
5 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
6 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 3 |
|||||||||
|
6 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 3 |
|||||||||
|
7 |
HEAD OF FORK/FRONT PANEL FRONT OEM PIAGGIO APRILIA 750-900 DORSODURO BLACK-856857 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/9/2/5/img/40925.jpg)
8 |
ADHESIF MOUSSE ORGINE APRILIA COMMON A LA RANGE-860447 More informationQuantity required : 2 |
|||||||||
