Vehicle Exploded View - GILERA DNA 125
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

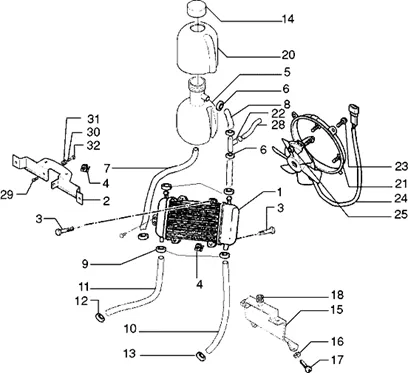

Moteur : T24 VASE D'EXPANSION - RADIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/171/DNA_125_T24.PNG)
1 |
970051 - RADIATEUR More informationQuantity required : 1 |
|||||||||
|
2 |
970172 - ETRIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
3 |
SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 4 |
|||||||||
|
5 |
577969-TANK More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/5/img/72865.jpg)
6 |
CLAMP (16. 2MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001903 More informationQuantity required : 5 |
|||||||||
|
7 |
576851-TUBE More informationQuantity required : 1 |
|||||||||
|
8 |
TUBE |
|||||||||
|
9 |
CLAMP (16. 2MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001903 More informationQuantity required : 2 |
|||||||||
|
10 |
576897 - TUBE More informationQuantity required : 1 |
|||||||||
|
11 |
TUBE |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
12 |
CLAMP SERRAGE HOSE (22. 6) OEM PIAGGIO COMMON A LA RANGE-CM001905 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/0/img/72870.jpg)
13 |
CLAMP HOSE (D 27. 1) OEM PIAGGIO COMMON A LA RANGE-CM001909 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/4/3/img/67743.jpg)
14 |
CAP VASE EXPANSION OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-623673 More informationQuantity required : 1 |
|||||||||
|
15 |
970076 - ETRIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/9/img/66579.jpg)
16 |
WASHER GROWER (6) OEM PIAGGIO COMMON A LA RANGE-479515 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/5/img/66135.jpg)
17 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-274369 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/1/img/66031.jpg)
18 |
RUBBER MOUNT OEM PIAGGIO COMMON A TOUTE LA RANGE MAXISCCOOTER-258904 More informationQuantity required : 2 |
|||||||||
|
20 |
576678 - COUVERTURE RESERVOIR LIQUIDE DNA More informationQuantity required : 1 |
|||||||||
|
21 |
580922 - ELECTRO VENTILATEUR More informationQuantity required : 1 |
|||||||||
|
22 |
574883-FITTING More informationQuantity required : 1 |
|||||||||
|
23 |
SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836 More informationQuantity required : 2 |
|||||||||
|
24 |
SUPPORT |
|||||||||
|
25 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
|||||||||
|
26 |
TUBE |
|||||||||
|
27 |
COLLIER |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/1/img/72891.jpg)
28 |
HOSE CLAMP HOSE (8X11) OEM PIAGGIO COMMON A LA RANGE-CM002904 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
29 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/4/5/img/66345.jpg)
30 |
RUBBER ANTI-VIBRATIONS OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/3/img/66123.jpg)
31 |
SPACER (6X10X11. 4) OEM PIAGGIO COMMON A LA RANGE-273288 More informationQuantity required : 1 |
|||||||||
|
32 |
|
|||||||||
