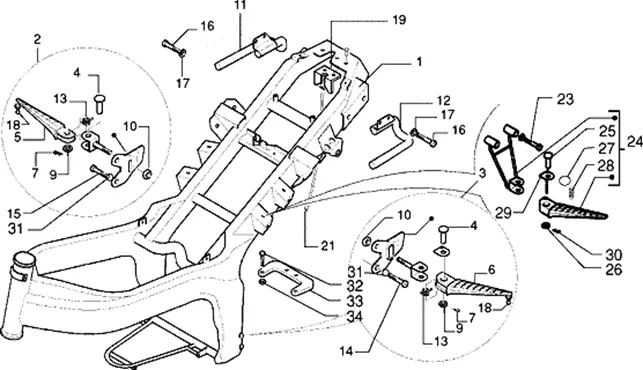

Châssis : T22 CHÂSSIS-BEQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/171/DNA_125_T22.PNG)
1 |
CHASSIS |
||||||
|
2 |
576940-FOOTREST AVD More informationQuantity required : 1 |
||||||
|
3 |
576939 - REPOSE PIED AVG More informationQuantity required : 1 |
||||||
|
4 |
965576 - PIVOT More informationQuantity required : 2 |
||||||
|
6 |
FOOTREST PILOTE LEFT OEM PIAGGIO GILERA 50 DNA-9430164 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/2/img/63782.jpg)
7 |
GOUPILLE OEM PIAGGIO COMMON A LA RANGE-003208 More informationQuantity required : 2 |
||||||
|
10 |
967356-NUT More informationQuantity required : 2 |
||||||
|
11 |
970228-GRIP More informationQuantity required : 1 |
||||||
|
12 |
970225-GRIP More informationQuantity required : 1 |
||||||
|
13 |
RESSORT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/5/img/66335.jpg)
14 |
SCREW BTR (8X16) OEM PIAGGIO COMMON A LA RANGE-319165 More informationQuantity required : 4 |
||||||
|
15 |
SCREW BTR (8X16) OEM PIAGGIO COMMON A LA RANGE-319165 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/4/img/65644.jpg)
16 |
SCREW TH (8X16) OEM PIAGGIO COMMON A LA RANGE-031116 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
17 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 4 |
||||||
|
18 |
AXE |
||||||
|
19 |
CM023702 - SERRURE More informationQuantity required : 1 |
||||||
|
21 |
970163-TRANSMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/3/img/68593.jpg)
23 |
SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-826298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/9/9/1/img/80991.jpg)
24 |
LEFT PASSENGER FOOTREST "PIAGGIO GENUINE PART" PIAGGIO GILERA 50-125 DNA -576910 More informationQuantity required : 1 |
||||||
|
24 |
576911 - REPOSE PIEDS DX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/5/img/66285.jpg)
25 |
ROD PIVOT FOOTREST OEM PIAGGIO 50 NRG, STALKER-295593 More informationQuantity required : 2 |
||||||
|
26 |
006177-WASHER S00617700 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/1/9/5/3/img/181953.JPG)
27 |
BILLE (6) OEM PIAGGIO COMMON A LA RANGE-2955916 More informationQuantity required : 2 |
||||||
|
27 |
BILLE (6) OEM PIAGGIO COMMON A LA RANGE-2955916 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/5/6/1/img/162561.jpg)
28 |
SPRING OF PRESSURE DE BILLE PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-2955909 More informationQuantity required : 2 |
||||||
|
28 |
SPRING OF PRESSURE DE BILLE PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-2955909 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/2/8/7/img/80287.jpg)
29 |
WASHER SPECIALE FRAME OEM PIAGGIO 50 STALKER-573956 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/5/img/66045.jpg)
30 |
CLIPS/GOUPILLE OEM PIAGGIO COMMON A LA RANGE-259933 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
31 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 4 |
||||||
|
32 |
SCREW TH (8X16) OEM PIAGGIO COMMON A LA RANGE-031116 More informationQuantity required : 2 |
||||||
|
33 |
970266 - PLAQUE More informationQuantity required : 1 |
||||||
|
34 |
709052 NUT More informationQuantity required : 2 |
