Vehicle Exploded View - APRILIA CLASSIC 125 1995-1999 APRILIA

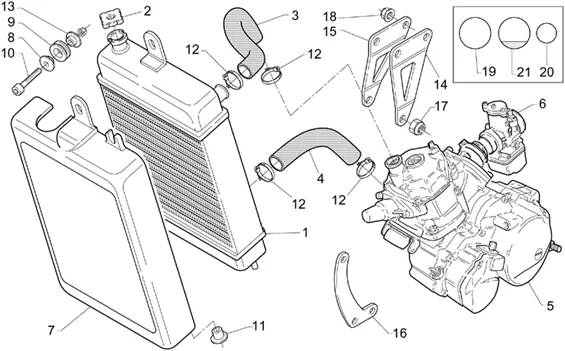

Chassis : 28.13 RADIATEUR - MOTEUR
Radiateur - Moteur
Search
Radiateur;

1
P2R reference P2R reference
Maker reference Maker reference AP8102482

Radiateur;

Bouchon radiateur

2
P2R reference P2R reference
Maker reference Maker reference AP8102647

Bouchon radiateur

Tube de culasse radiateur;

3
P2R reference P2R reference
Maker reference Maker reference AP8102481

Tube de culasse radiateur;

Tube pompe radiateur

4
P2R reference P2R reference
Maker reference Maker reference AP8120938

Tube pompe radiateur

5
P2R reference P2R reference
Maker reference Maker reference AP81063055

5
P2R reference P2R reference
Maker reference Maker reference AP81063545

5
P2R reference P2R reference
Maker reference Maker reference AP81063565

5
P2R reference P2R reference
Maker reference Maker reference AP81064075

5
P2R reference P2R reference
Maker reference Maker reference AP81065225

Carburateur

6
P2R reference P2R reference
Maker reference Maker reference AP8106335

Carburateur

Carburateur

6
P2R reference P2R reference
Maker reference Maker reference AP8106355

Carburateur

Carburateur

6
P2R reference P2R reference
Maker reference Maker reference AP8106357

Carburateur

Carburateur

6
P2R reference P2R reference
Maker reference Maker reference AP8106408

Carburateur

Grille de radiateur;

7
P2R reference P2R reference
Maker reference Maker reference AP8138330

Grille de radiateur;

Grille de radiateur;

7
P2R reference P2R reference
Maker reference Maker reference AP8139456

Grille de radiateur;

AP8121035 - "DOUILLE EN ""T"""

8
P2R reference P2R reference 46719
Maker reference Maker reference AP8121035

AP8121035-" BUSH EN " " T " " "

More information

Quantity required : 1

RUBBER RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE-AP8120594

9
P2R reference P2R reference 71407
Maker reference Maker reference AP8120594

RUBBER RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE-AP8120594

More information

Quantity required : 1

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281

10
P2R reference P2R reference 71944
Maker reference Maker reference AP8152281

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281

More information

Quantity required : 1

Caoutchouc

11
P2R reference P2R reference
Maker reference Maker reference AP8220184

Caoutchouc

AP8201169-CLAMP CLIC

12
P2R reference P2R reference 72128
Maker reference Maker reference AP8201169

AP8201169-CLAMP CLIC

More information

Quantity required : 3

AP8121679 - "DOUILLE EN ""T"""

13
P2R reference P2R reference 71481
Maker reference Maker reference AP8121679

AP8121679-" BUSH EN " " T " " "

More information

Quantity required : 1

Plaque sup. D mot.;

14
P2R reference P2R reference
Maker reference Maker reference AP8135891

Plaque sup. D mot.;

Plaque sup. G mot.;

15
P2R reference P2R reference
Maker reference Maker reference AP8135892

Plaque sup. G mot.;

Plaque fix. moteur;

16
P2R reference P2R reference
Maker reference Maker reference AP8134369

Plaque fix. moteur;

NUT FLANGE M8 OEM PIAGGIO COMMON A LA RANGE-2B004511

17
P2R reference P2R reference 145822
Maker reference Maker reference AP8150334

NUT FLANGE M8 OEM PIAGGIO COMMON A LA RANGE-2B004511

More information

Quantity required : 1

NUT FLANGE M8 OEM PIAGGIO COMMON A LA RANGE-2B004511

17
P2R reference P2R reference 145822
Maker reference Maker reference 2B004511

NUT FLANGE M8 OEM PIAGGIO COMMON A LA RANGE-2B004511

More information

Quantity required : 1

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300

18
P2R reference P2R reference 71959
Maker reference Maker reference AP8152300

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300

More information

Quantity required : 2

19
P2R reference P2R reference
Maker reference Maker reference AP81171075

20
P2R reference P2R reference
Maker reference Maker reference AP81171085

21
P2R reference P2R reference
Maker reference Maker reference AP81171095
