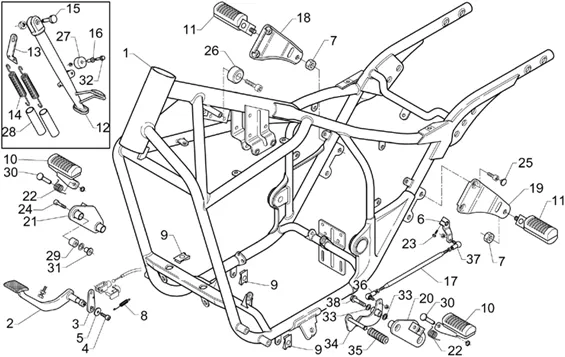

Vehicle Exploded View - APRILIA CLASSIC 125 1995-1999

	P2R reference
	Maker reference	AP8135736

Cadre gris mir.;

	P2R reference
	Maker reference	AP8135888

Cadre cuive;

	P2R reference
	Maker reference	AP8146058

Cadre sab.cat.bleu s;

	P2R reference
	Maker reference	AP8146143

Châssis, noir;

	P2R reference	45970
	Maker reference	AP8113576

AP8113576 - LEVIER FREIN AR CHR.

	P2R reference
	Maker reference	AP8135826

Levier renvoi frein AR;

	P2R reference	71941
	Maker reference	AP8152277

SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277

	P2R reference	71808
	Maker reference	AP8150015

WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015

	P2R reference	49158
	Maker reference	AP8135726

GEARBOX CONTROL CONNECTING ROD "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, CLASSIC -AP8135726-

	P2R reference	71959
	Maker reference	AP8152300

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300

	P2R reference
	Maker reference	AP8221040

Ressort interrupteur stop

	P2R reference	71174
	Maker reference	AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

	P2R reference
	Maker reference	AP8135962

R-pied pilote-paire

	P2R reference
	Maker reference	AP8135963

R-pied pass.-paire

	P2R reference	49160
	Maker reference	AP8135744

AP8135744 - BEQUILLE LATERALE NOIR;

	P2R reference	46950
	Maker reference	AP8121876

PLATE MOUNTING SPRING SIDE STAND OEM APRILIA 125-250 LEONARDO 1996 > 2004-AP8121876

	P2R reference	71426
	Maker reference	AP8121014

SPRING RAPPEL STAND (PETIT SPRING) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121014

	P2R reference	50977
	Maker reference	AP8152295

AP8152295 - VIS BEQUILLE LAT.

	P2R reference	46717
	Maker reference	AP8121012

SPACER OEM PIAGGIO COMMON A LA RANGE-AP8121012

	P2R reference
	Maker reference	AP8121959

Tige renvoi boîte de vitesses;

	P2R reference
	Maker reference	AP8135738

Support r-p. D pass.;

	P2R reference
	Maker reference	AP8135740

Support r-p. G pass.;

	P2R reference
	Maker reference	AP8135742

Sup.pl.pilote gche;

	P2R reference	49164
	Maker reference	AP8135783

AP8135783 - SUP.PL.PILOTE DTE;

	P2R reference
	Maker reference	AP8121701

Res. hélic. torsion

	P2R reference	71942
	Maker reference	AP8152279

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279

	P2R reference	71954
	Maker reference	AP8152292

SCREW FLANGE TH (M8X50) OEM PIAGGIO COMMON A LA RANGE-AP8152292

	P2R reference
	Maker reference	AP8220188

Bouchon

	P2R reference
	Maker reference	AP8220148

Caoutchouc réserv.

	P2R reference	46602
	Maker reference	AP8120338

ROULETTE DE SIDE STAND OEM PIAGGIO 125 SCARABEO 1999 > 2004-AP8120338

	P2R reference	46661
	Maker reference	AP8120822

SILENBLOC SPRING PEDAL OF BRAKE OEM APRILIA 1000-1100 RSV4/660 RS-AP8120822

	P2R reference
	Maker reference	AP8120939

Silentbloc

	P2R reference
	Maker reference	AP8101647

Pivot artic.r-pied

	P2R reference	71433
	Maker reference	AP8121096

WASHER EN T (8. 2X12X4) FOR SCREW OF 6 OEM PIAGGIO COMMON A LA RANGE-AP8121096

	P2R reference	71944
	Maker reference	AP8152281

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281

	P2R reference	56858
	Maker reference	AP8220299

AP8220299 - JOINT TORIQUE

	P2R reference
	Maker reference	AP8135748

Levier boîte de vitesses;

	P2R reference	72273
	Maker reference	AP8220189

RUBBER OF GEAR LEVER OEM PIAGGIO APRILIA 50-125 RS, CLASSIC, 125 FUTURA, 600-650 PEGASO/MOTO-GUZZI 750 BREVA-AP8220189

	P2R reference	72185
	Maker reference	AP8210007

ROTULE DE GEAR LEVER (FILETAGE A RIGHT) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI ET APRILIA-AP8210007

	P2R reference	71268
	Maker reference	AP8110053

ROTULE DE GEAR LEVER (FILTAGE A LEFT) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8110053

	P2R reference	71941
	Maker reference	AP8152277

SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277
