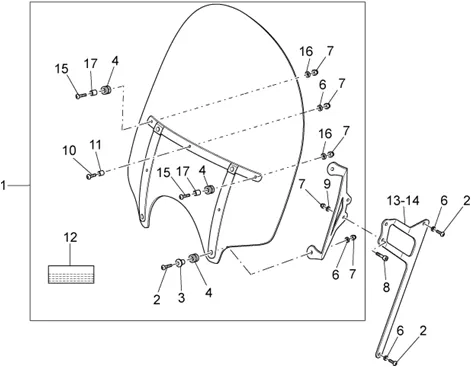

Chassis : 33.10 PARE-BRISE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/484/California_Vintage_1100_2006-2010_33.10.PNG)
1 |
Kit Pare-brise |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/5/9/img/133059.jpg)
2 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-GU98370621 More informationQuantity required : 8 |
||||||
|
3 |
GU03578432-BUSH More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/8/1/img/73481.jpg)
4 |
RUBBER 10X25 OEM PIAGGIO COMMON A LA RANGE-GU32577910 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
6 |
WASHER ELASTIC (6. 4X12) OEM PIAGGIO COMMON A LA RANGE-GU03013800 More informationQuantity required : 13 |
||||||
|
7 |
GU92787006-NUT More informationQuantity required : 13 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
8 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 4 |
||||||
|
9 |
GU91120620-SPACER More informationQuantity required : 8 |
||||||
|
10 |
GU98370612-SCREW More informationQuantity required : 3 |
||||||
|
11 |
GU91120605-BUSH More informationQuantity required : 3 |
||||||
|
12 |
Décalco |
||||||
|
13 |
977454-STAFFA DX ALLA FORCELLA VINTAGE More informationQuantity required : 1 |
||||||
|
14 |
977455 - STAFFA SX ALLA FORCELLA VINTAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/6/img/73566.jpg)
15 |
SCREW BTR SPECIALE HEAD BOMBEE (6X16) OEM MOTO GUZZI COMMON A LA RANGE-GU98370616 More informationQuantity required : 6 |
||||||
|
16 |
GU95005331-WASHER 6, 5X24X2 More informationQuantity required : 2 |
||||||
|
17 |
DOUILLE |
