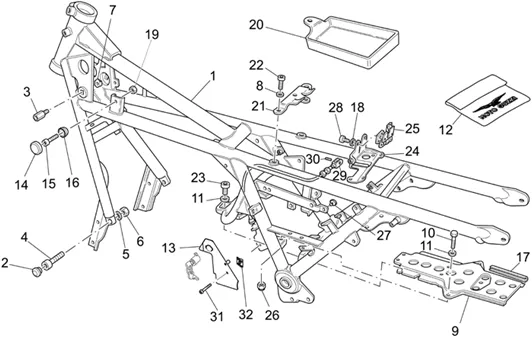

Chassis : 33.01 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/484/California_Vintage_1100_2006-2010_33.01.PNG)
1 |
977200 - TELAIO VINTAGE More informationQuantity required : 1 |
||||||
|
2 |
GU93180216-RUBBER More informationQuantity required : 2 |
||||||
|
3 |
GU03469200-STUD More informationQuantity required : 2 |
||||||
|
4 |
GU98683635-SCREW M12X35 More informationQuantity required : 2 |
||||||
|
5 |
GU95022112-WASHER EVENT. More informationQuantity required : 2 |
||||||
|
6 |
GU92606312-NUT More informationQuantity required : 2 |
||||||
|
7 |
GU92660601-NUT EN CAGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/4/6/img/110646.jpg)
8 |
WASHER SPRING (8. 4X15X1. 5) OEM PIAGGIO COMMON A LA RANGE-658837 More informationQuantity required : 2 |
||||||
|
9 |
GU29418360-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/6/img/73566.jpg)
10 |
SCREW BTR SPECIALE HEAD BOMBEE (6X16) OEM MOTO GUZZI COMMON A LA RANGE-GU98370616 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.jpg)
11 |
WASHER 8, 4X15X1, 8 COMMON A LA RANGE MOTO GUZZI/APRILIA-GU95008208 More informationQuantity required : 7 |
||||||
|
12 |
GU30970200 - HOUSSE PROTECT.MOTO More informationQuantity required : 1 |
||||||
|
13 |
977163-PLATE BLOCCHETTO APRISELLA CON PI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/8/6/img/131886.jpg)
14 |
BUFFER DE FRAME OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU39103400 More informationQuantity required : 2 |
||||||
|
16 |
GU391035005 - DISQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/3/3/4/img/101334.jpg)
17 |
GASKET PVC OEM MOTO GUZZI COMMON A LA RANGE-GU00823931080 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
18 |
WASHER ELASTIC (6. 4X12) OEM PIAGGIO COMMON A LA RANGE-GU03013800 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
19 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
|
20 |
GU03479545 - SUPPORTO ATTREZZI More informationQuantity required : 1 |
||||||
|
21 |
GU304613605 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/5/img/67255.jpg)
22 |
SCREW BTR HEAD BOMBEE (8X16) OEM PIAGGIO COMMON A LA RANGE-582428 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/7/img/133187.jpg)
23 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-GU98682420 More informationQuantity required : 4 |
||||||
|
24 |
GU03462345-PLATE FISSAGGIO SELLA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/7/4/6/img/130746.jpg)
25 |
SADDLE LOCK "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA -GU30462060 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/2/8/img/132528.jpg)
26 |
GU92650036 - ECROU BRIDE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/6/8/0/img/129680.jpg)
27 |
BUFFER STAND LATERLE OEM MOTO GUZZI COMMON A LA RANGE-GU19705900 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/4/img/73564.jpg)
28 |
SCREW (6X12) BOX OF SPEED OEM MOTO GUZZI COMMON A LA RANGE-GU98350312 More informationQuantity required : 2 |
||||||
|
29 |
977384-TRASMISSIONE SGANCIO SELLA More informationQuantity required : 1 |
||||||
|
30 |
GU95522508-GOUPILLE More informationQuantity required : 1 |
||||||
|
31 |
GU98370630-SCREW M6X30 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
32 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
