Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1000 California III Carburatori 1000 1987-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

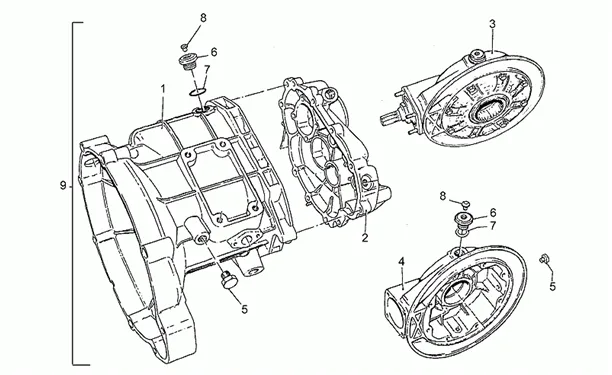

Moteur : 34.51 BOITE DE VITESSES GRISE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/480/California_III_Carburatori_1000_1987-1993_34.51.PNG)
1 |
Carter de boîte vitesses |
||||||
|
2 |
Couvercle boîte |
||||||
|
3 |
PONT ARR.COMPLET |
||||||
|
4 |
GU30350360 - CARTER DE TRANSMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/0/2/2/img/131022.jpg)
5 |
CAP VIDANGE OIL ENGINE/BV/PONT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU31003766 More informationQuantity required : 5 |
||||||
|
5 |
GU95980214 - BOUCHON NIVEAU HUILE More informationQuantity required : 5 |
||||||
|
6 |
CAP OBTURATEUR USINAGE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU12022600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/4/img/132224.jpg)
7 |
O-RING (20, 24X2, 62) SHAFT CLUTCH OU CAP OIL DE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU90706203 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/8/img/132578.jpg)
8 |
CAP OBTURATEUR ORINE MOTO GUZZI COMMON A LA RANGE-GU93180245 More informationQuantity required : 1 |
||||||
|
9 |
Boîte vit.cpl.grise |
