Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1000 California III Carburatori 1000 1987-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

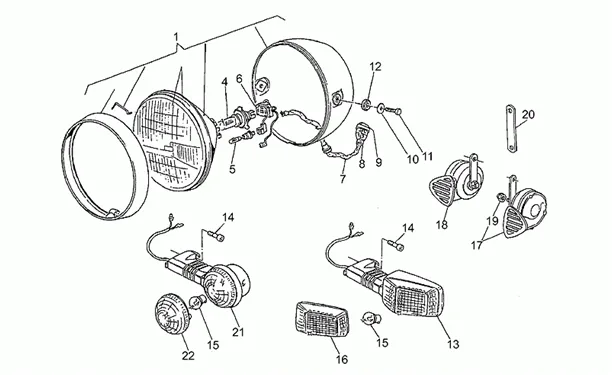

Chassis : 33.07 PHARE AVANT-KLAXON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/480/California_III_Carburatori_1000_1987-1993_33.07.PNG)
1 |
GU29740500-GROUP LAMP UNIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
4 |
AMPOULE/LAMPE 12V 60/55W H4 OEM PIAGGIO COMMON A LA RANGE-292723 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/9/img/65759.jpg)
5 |
AMPOULE/LAMPE 12V 4W BA9S OEM PIAGGIO COMMON A LA RANGE-163015 More informationQuantity required : 1 |
||||||
|
6 |
Bloc démarreur |
||||||
|
7 |
FAISCEAU PRINCIPAL |
||||||
|
8 |
GU17755760 - CAPUCHON More informationQuantity required : 1 |
||||||
|
9 |
GU17755860 - CONNECTEUR More informationQuantity required : 1 |
||||||
|
10 |
GU95004208 - RONDELLE More informationQuantity required : 2 |
||||||
|
11 |
GU98054520-SCREW M10X20 More informationQuantity required : 2 |
||||||
|
12 |
GU14439800 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
13 |
|
||||||
|
14 |
GU98612320-SCREW More informationQuantity required : 2 |
||||||
|
15 |
GU93450127-LAMPE (OU AMPOULE) 12V-10W More informationQuantity required : 2 |
||||||
|
16 |
GU23753710 - VITRE CLIGNOTANT More informationQuantity required : 1 |
||||||
|
17 |
|
||||||
|
18 |
GU29743753 - AVERTISSEUR More informationQuantity required : 1 |
||||||
|
19 |
GU92602206-NUT More informationQuantity required : 2 |
||||||
|
20 |
SUPPORT AVERTISSEUR |
||||||
|
21 |
Indicateur direction |
||||||
|
22 |
Vitre clignotant |
