Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Classic Touring 1100 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

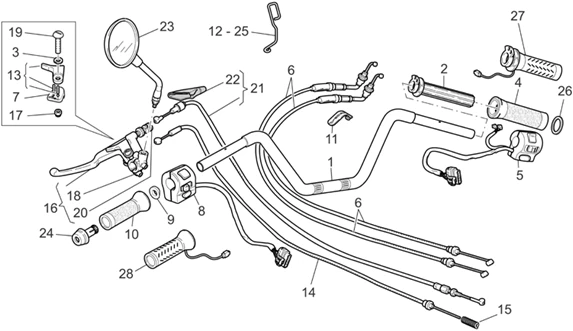

Chassis : 33.28 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/476/California_Classic_Touring_1100_2006-2008_33.28.PNG)
1 |
GU03600311 - GUIDON More informationQuantity required : 1 |
||||||
|
2 |
GU03603860-HOSE THROTTLE WITHOUT MANETTE More informationQuantity required : 1 |
||||||
|
3 |
GU27530594 - RONDELLE More informationQuantity required : 1 |
||||||
|
4 |
GU03603560-GRIP DR. More informationQuantity required : 1 |
||||||
|
5 |
GU03738846 - DEVIATEUR FEUX DTE More informationQuantity required : 1 |
||||||
|
5 |
GU03738870-DEVIATEUR FEUX DTE More informationQuantity required : 1 |
||||||
|
6 |
GU03117545 - TRASMISSIONE COMANDO GAS More informationQuantity required : 2 |
||||||
|
7 |
GU27530595-PLATE More informationQuantity required : 1 |
||||||
|
8 |
GU03738045 - DEVIATEUR FEUX GCHE More informationQuantity required : 1 |
||||||
|
9 |
GU03604245-BUSH More informationQuantity required : 1 |
||||||
|
10 |
GU03603060-GRIP GC. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/8/9/5/img/101895.jpg)
11 |
CLAMP SERRE CABLE 46 MM OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU01609630 More informationQuantity required : 2 |
||||||
|
12 |
GU03669000-OEILLETDROIT GUIDE DESTRANS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/3/4/img/64334.jpg)
13 |
00H00902661 - LEVIER More informationQuantity required : 1 |
||||||
|
14 |
GU03132845-CABLE STARTER More informationQuantity required : 1 |
||||||
|
15 |
GU94321070-SPRING More informationQuantity required : 1 |
||||||
|
16 |
GU03605545 - LEVIER EMBRAYAGE More informationQuantity required : 1 |
||||||
|
17 |
GU92602206-NUT More informationQuantity required : 1 |
||||||
|
18 |
AP8118349-CAVALIER More informationQuantity required : 1 |
||||||
|
19 |
|
||||||
|
20 |
AP8118348-REGLAGE LEVER CLUTCH More informationQuantity required : 1 |
||||||
|
20 |
AP8118348-REGLAGE LEVER CLUTCH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/4/0/8/img/102408.jpg)
21 |
CABLE/CONTROL/TRANSMISSION CLUTCH OEM PIAGGIO MOTO-GUZZI 1100 CALIFORNIA 2003 > 2011-GU03093070 More informationQuantity required : 1 |
||||||
|
22 |
GU27663815-PROTECTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/9/6/8/img/99968_20260415164519.jpg)
23 |
PAIRE DE RETROVISEURS (FU) OEM PIAGGIO MOTO-GUZZI 1100-1200 BREVA 2005 >, GRISO 2005 >, 1200 NORGE 2006 >, 1100 CALIFORNIA 2006 > 2011, 750 V7 2009 >, NEVADA 2009 >, 850 V9 2016 >, 940 BELLAGIO-97702R More informationQuantity required : 2 |
||||||
|
23 |
PAIRE DE RETROVISEURS (FU) OEM PIAGGIO MOTO-GUZZI 1100-1200 BREVA 2005 >, GRISO 2005 >, 1200 NORGE 2006 >, 1100 CALIFORNIA 2006 > 2011, 750 V7 2009 >, NEVADA 2009 >, 850 V9 2016 >, 940 BELLAGIO-97702R More informationQuantity required : 2 |
||||||
|
24 |
GU03602760 - EQUILIBRAGE More informationQuantity required : 2 |
||||||
|
25 |
GU03669001-OEILLETGAUCHE GUIDE DESTRANS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/2/7/img/130427.jpg)
26 |
WASHER NYLON HANDLEBAR OEM MOTO GUZZI COMMON A LA RANGE-GU29606970 More informationQuantity required : 1 |
||||||
|
27 |
GU03603370 - POIGNEE RECHAUFFEE DROITE More informationQuantity required : 1 |
||||||
|
28 |
GU03603070-GRIP RECHAUFFEE LEFT More informationQuantity required : 1 |
