Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Classic Touring 1100 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

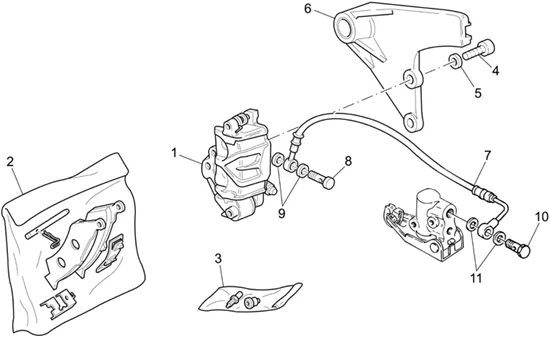

Chassis : 33.26 PINCE FREIN AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/476/California_Classic_Touring_1100_2006-2008_33.26.PNG)
1 |
GU03653001 - PINCE FREIN AR OR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/2/4/1/img/128241.jpg)
2 |
GU03654600-KIT PLAQUETTES More informationQuantity required : 1 |
||||||
|
3 |
AP8113549 - PURGE AIR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/6/img/71836.jpg)
4 |
SCREW BTR (10X30) OEM PIAGGIO COMMON A LA RANGE-AP8150195 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
5 |
WASHER GEAR OIL PUMP (10, 5X16X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8152220 More informationQuantity required : 2 |
||||||
|
6 |
GU03635811-PLAQ. FIX PINCE BRAKE More informationQuantity required : 1 |
||||||
|
7 |
REAR BRAKE PIPE "PIAGGIO GENUINE PART" MOTO GUZZI CALIFORNIA 1100 1997>2008 -GU03657500- More informationQuantity required : 1 |
||||||
|
8 |
GU95990028 - VIS TUYAU HUILE * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/9/img/129949.jpg)
9 |
WASHER HOSE BRAKE (10X1. 5X1) OEM MOTO GUZZI COMMON A LA RANGE-GU25656100 More informationQuantity required : 2 |
||||||
|
10 |
GU95990040 - VIS PERCEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/1/8/5/img/125185.jpg)
11 |
GASKET/GARNITURE 12, 25 OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU12006400 More informationQuantity required : 2 |
