Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Touring SE ABS 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

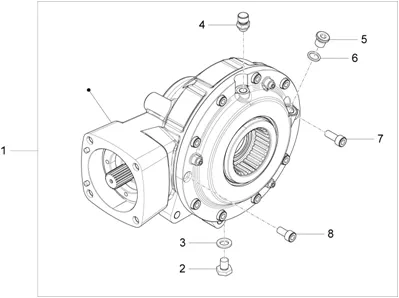

Moteur : 03.350 LA TRANSMISSION ARRIERE / COMPOSANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/473/California_1400_Touring_SE_ABS_2015_03.350.PNG)
1 |
2R000231-ENSEMBLE COUPLE CONIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/0/2/2/img/131022.jpg)
2 |
CAP VIDANGE OIL ENGINE/BV/PONT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU31003766 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/6/9/0/img/101690.jpg)
3 |
GASKET (10X18X1. 5) CAP DE VIDANGE OEM PIAGGIO FOR MOTORCYCLE-GUZZI BREVA, GRISO, NEVADA, NORGE, STELVIO, V-7, V-9, V-11, SPORT, CALIFORNIA, AUDACE, ELDORADO, BELAGIO-GU01528930 More informationQuantity required : 1 |
||||||
|
4 |
B064044 - BOUCHON PURGE More informationQuantity required : 1 |
||||||
|
5 |
GU05351230-CAP OIL M12X1, 5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/6/1/img/132261.jpg)
6 |
GU90718120 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/9/img/71829.jpg)
7 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8150169 More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/5/img/66335.jpg)
8 |
SCREW BTR (8X16) OEM PIAGGIO COMMON A LA RANGE-319165 More informationQuantity required : 1 |
