Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Touring SE ABS 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

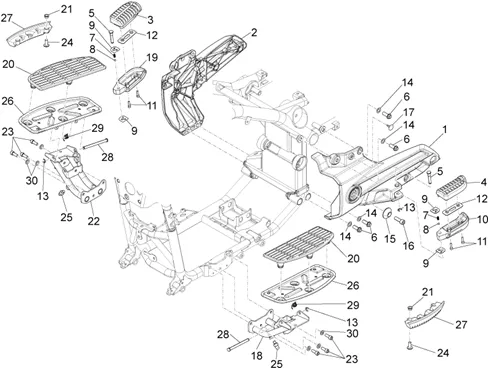

Chassis : 01.020 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/473/California_1400_Touring_SE_ABS_2015_01.020.PNG)
1 |
88733100XNB-(*) BRACKET PEDANA PASS SX V NERO QUASA More informationQuantity required : 1 |
||||||
|
2 |
88733000XNB-(*) BRACKET PEDANA PASS DX V NERO QUASA More informationQuantity required : 1 |
||||||
|
3 |
B063134-GOMMA PEDANA DX More informationQuantity required : 1 |
||||||
|
4 |
B063133-GOMMA PEDANA SX More informationQuantity required : 1 |
||||||
|
5 |
B064101-PIVOT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/7/img/71977.jpg)
6 |
SCREW BRAKE CALIPER OEM PIAGGIO APRILIA 1000 RSV, TUONO/MOTO-GUZZI 1200 SPORT, BREVA, NORGE, 1400 CALIFORNIA-AP8152385 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
7 |
SPRING DE MAINTIEN FOOTREST OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121133 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/4/img/71274.jpg)
8 |
BILLE D. 7 OEM PIAGGIO COMMON A LA RANGE-AP8110110 More informationQuantity required : 2 |
||||||
|
9 |
B063309-PIASTRINA FINE CORSA PEDANA PASSEGGERO More informationQuantity required : 4 |
||||||
|
10 |
B06382100YE4-(*) PEDANA PASSEGGERO SX VERN. GREY IRO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/6/img/71846.jpg)
11 |
SCREW BTR (5X20) OEM PIAGGIO COMMON A LA RANGE-AP8150252 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/1/2/img/71712.jpg)
12 |
PLATE REST PIDE PASSENGER OEM MOTO GUZZI AUDACE, CALIFORNIA, ELDORADO-AP8134857 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/4/img/71404.jpg)
13 |
CIRCLIPS OF REST FOOT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8120573 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.jpg)
14 |
WASHER ELASTIC (D10. 4) OEM PIAGGIO COMMON A LA RANGE-AP8150292 More informationQuantity required : 8 |
||||||
|
15 |
851821-BUSH More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/6/img/71836.jpg)
16 |
SCREW BTR (10X30) OEM PIAGGIO COMMON A LA RANGE-AP8150195 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
17 |
CAP RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8120001 More informationQuantity required : 2 |
||||||
|
18 |
887303-BRACKET PEDANA SX CON PI More informationQuantity required : 1 |
||||||
|
19 |
B06382000YE4-(*) PEDANA PASSEGGERO DX VERN. GREY IRO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/6/4/5/img/102645.jpg)
20 |
MATTE OF FOOTREST LEFT OR RIGHT OEM PIAGGIO MOTO-GUZZI 1400 CALIFORNIA 2012 >, ELDORADO 2015, 1100 CALIFORNIA 1997 > 2012-GU03447070 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/0/0/img/71500.jpg)
21 |
BUSH EN T (6. 5X8. 6X9) OEM PIAGGIO COMMON A LA RANGE-AP8121929 More informationQuantity required : 4 |
||||||
|
22 |
887302-BRACKET PEDANA DESTRO CON PI * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/7/img/133187.jpg)
23 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-GU98682420 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
24 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/9/0/2/0/img/159020.jpg)
25 |
PIVOT DE FRICTION FOOTREST PILOTE OEM MOTO GUZZI AUDACE, CALIFORNIA, V7, V9-2B004856 More informationQuantity required : 2 |
||||||
|
25 |
PIVOT DE FRICTION FOOTREST PILOTE OEM MOTO GUZZI AUDACE, CALIFORNIA, V7, V9-2B004856 More informationQuantity required : 2 |
||||||
|
26 |
B063055-PEDANA PILOTA CON PI More informationQuantity required : 2 |
||||||
|
27 |
B063931-PATTINO PEDANA More informationQuantity required : 2 |
||||||
|
28 |
CM228403-PERNO PEDANA More informationQuantity required : 2 |
||||||
|
29 |
B063591-MOLLA More informationQuantity required : 2 |
||||||
|
30 |
GU95008308-WASHER More informationQuantity required : 1 |
