Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Touring ABS USA-CND 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

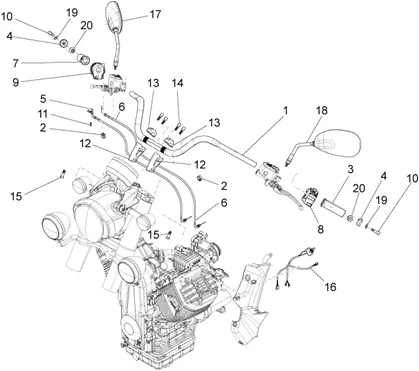

Commandes : 07.020 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/472/California_1400_Touring_ABS_USA-CND_2015_07.020.PNG)
1 |
887549-MANUBRIO TOURING * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/3/8/img/67938.jpg)
2 |
CLIPS SPRING (D22) OEM PIAGGIO COMMON A LA RANGE-641652 More informationQuantity required : 4 |
||||||
|
3 |
GU03603060-GRIP GC. More informationQuantity required : 1 |
||||||
|
4 |
GU30602861-EQUILIBRATORE More informationQuantity required : 2 |
||||||
|
5 |
CABLE/CONTROL/TRANSMISSION OUVERTURE THROTTLE OEM PIAGGIO MOTO-GUZZI 1400 CALIFORNIA, ELDORADO-887567 More informationQuantity required : 1 |
||||||
|
6 |
887568-CABLE CHIUSURA GAS More informationQuantity required : 1 |
||||||
|
7 |
B063339-COMANDO GAS CON MANOPOLA More informationQuantity required : 1 |
||||||
|
8 |
887795-DEVIOLUCI SX More informationQuantity required : 1 |
||||||
|
9 |
887796-DEVIOLUCI DX More informationQuantity required : 1 |
||||||
|
9 |
B063030-DEVIOLUCI DX USA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/1/1/img/133211.jpg)
10 |
GU98692325-SCREW TCEI M6X25 More informationQuantity required : 2 |
||||||
|
11 |
978059-SCREW AUTOF 50X10 PT/KB More informationQuantity required : 1 |
||||||
|
12 |
GU06500200-CAVALIER INF. More informationQuantity required : 2 |
||||||
|
13 |
GU06500600-CAVALIER SUP. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/4/img/71904.jpg)
14 |
SCREW BTR (8X30) DE T DE FORK OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8150540 More informationQuantity required : 4 |
||||||
|
15 |
AP8152325-SCREW FLANGE More informationQuantity required : 2 |
||||||
|
16 |
887823 - (*)INTERUTTORE FENDINEBBIA More informationQuantity required : 1 |
||||||
|
17 |
RIGHT MIRROR OEM PIAGGIO MOTO-GUZZI 1400 CALIFORNIA 2012 >-B064116 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/2/7/4/img/101274.jpg)
18 |
LEFT MIRROR OEM PIAGGIO MOTO-GUZZI 1400 CALIFORNIA 2016 >-B064115 More informationQuantity required : 1 |
||||||
|
19 |
AP8150182-WASHER ELASTIC COURBE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
20 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 2 |
