Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Touring ABS USA-CND 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

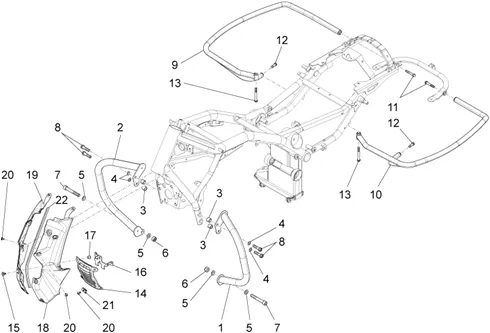

Chassis : 01.040 PROTECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/472/California_1400_Touring_ABS_USA-CND_2015_01.040.PNG)
1 |
B063577-PARAURTI ANTERIORE SX CON P. I. More informationQuantity required : 1 |
||||||
|
2 |
B063578-PARAURTI ANT DX CON P. I * More informationQuantity required : 1 |
||||||
|
3 |
B063583-SPACER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.jpg)
4 |
WASHER ELASTIC (D10. 4) OEM PIAGGIO COMMON A LA RANGE-AP8150292 More informationQuantity required : 4 |
||||||
|
5 |
GU95129240-WASHER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/4/img/71884.jpg)
6 |
NUT AUTOBLOQUANT/NYLSTOP (M12) OEM PIAGGIO COMMON A LA RANGE-AP8150432 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/0/5/img/133205.jpg)
7 |
SCREW BTR (12X70) OEM PIAGGIO COMMON A LA RANGE-GU98690670 More informationQuantity required : 2 |
||||||
|
8 |
AP8150494-SCREW FLANGE More informationQuantity required : 4 |
||||||
|
9 |
B063626-PARAURTI BORSA DX CON PI * More informationQuantity required : 1 |
||||||
|
10 |
B063625-PARAURTI BORSA SX CON P. I * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/4/img/71954.jpg)
11 |
SCREW FLANGE TH (M8X50) OEM PIAGGIO COMMON A LA RANGE-AP8152292 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
12 |
SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152287 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/6/img/71956.jpg)
13 |
SCREW FLANGE TH (8X70) OEM PIAGGIO COMMON A LA RANGE-AP8152294 More informationQuantity required : 2 |
||||||
|
14 |
B063902-GRIGLIA ANTERIORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/3/img/71773.jpg)
15 |
RIVET FEMELLE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144563)-AP8144616 More informationQuantity required : 4 |
||||||
|
16 |
B064001-STAFFA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/9/img/71769.jpg)
17 |
RIVET MALE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144616)-AP8144563 More informationQuantity required : 4 |
||||||
|
18 |
B063717-COPERTURA CANNOTTO SX More informationQuantity required : 1 |
||||||
|
19 |
B063716-COPERTURA CANNOTTO DX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
20 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
21 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/3/3/4/img/101334.jpg)
22 |
GASKET PVC OEM MOTO GUZZI COMMON A LA RANGE-GU00823931080 More informationQuantity required : 2 |
